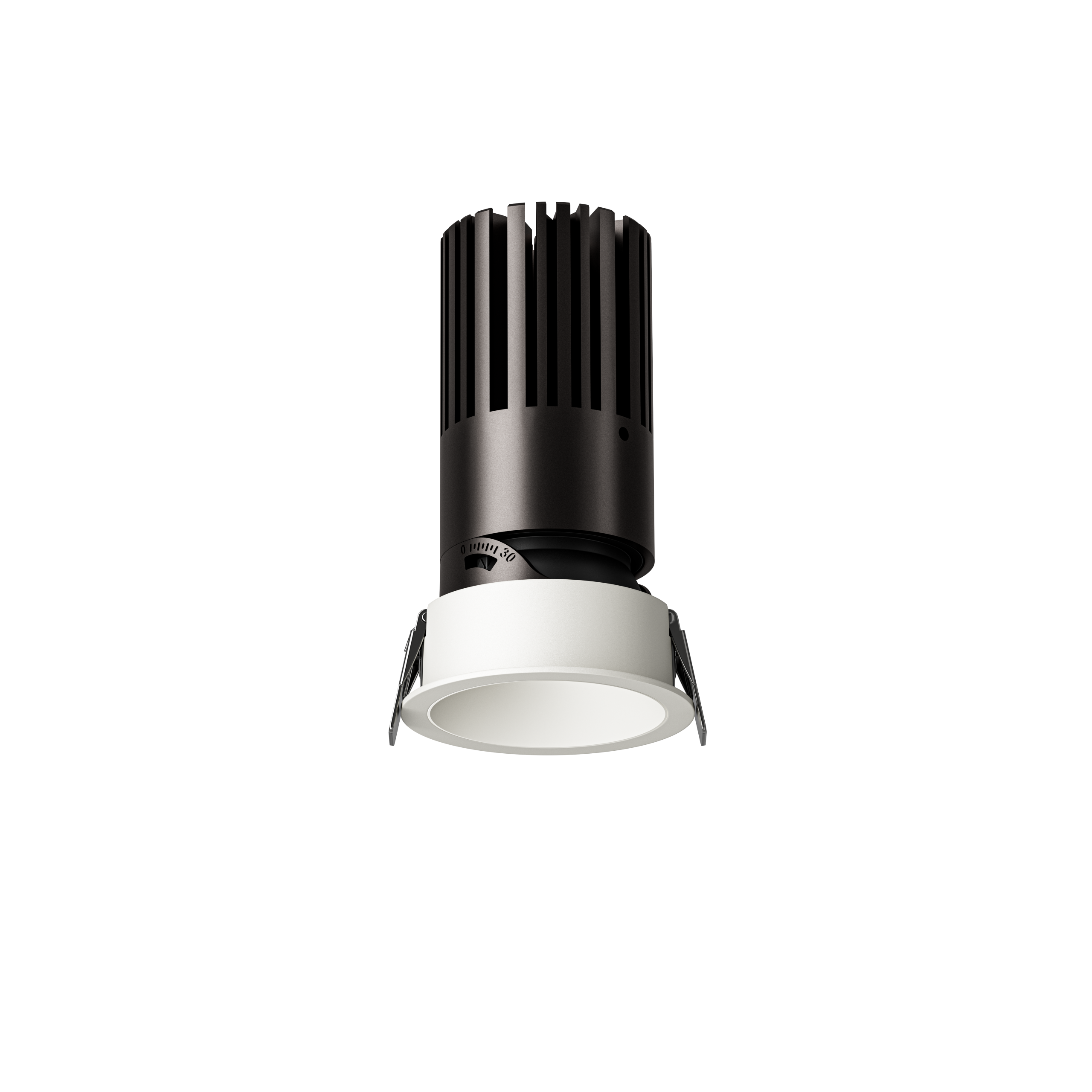

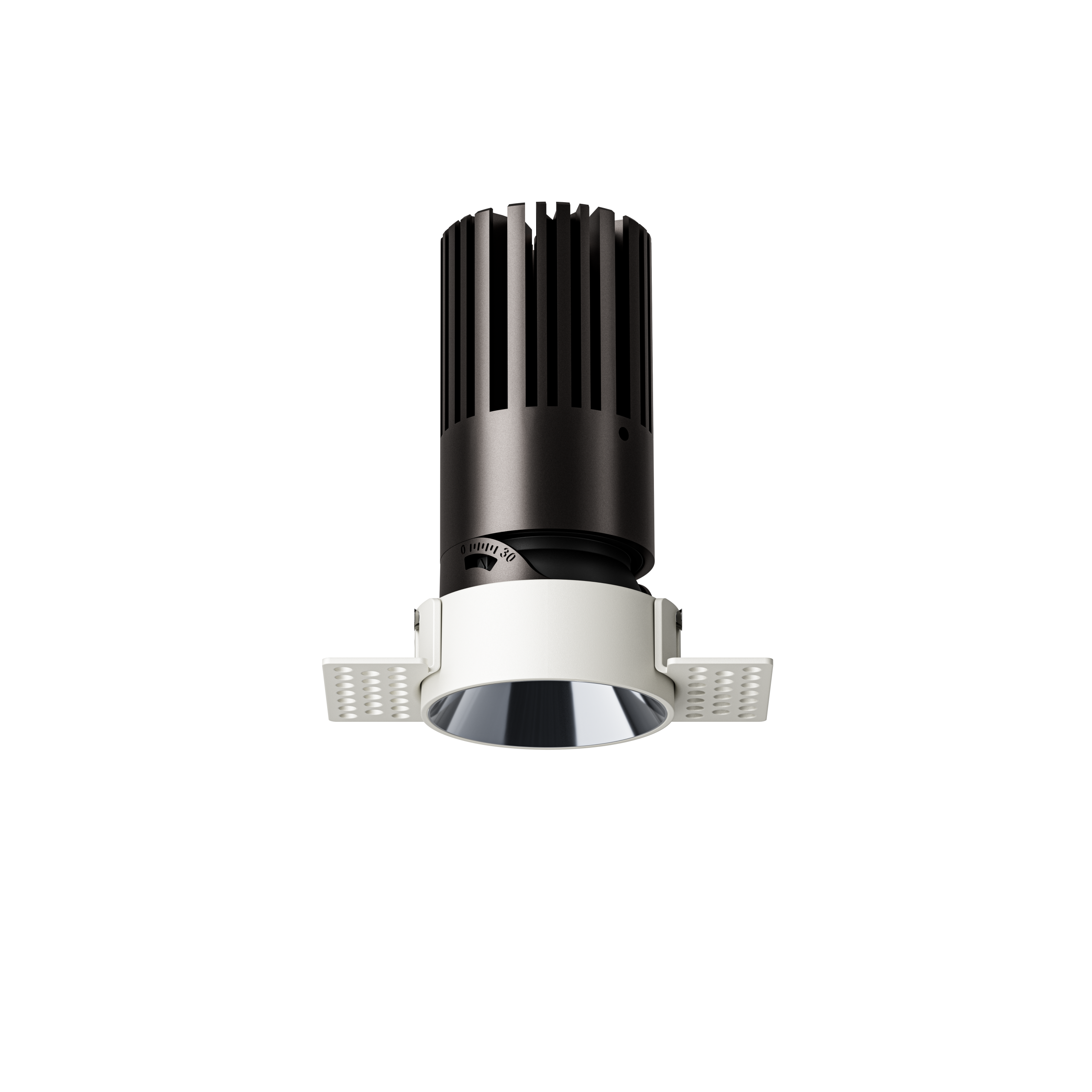

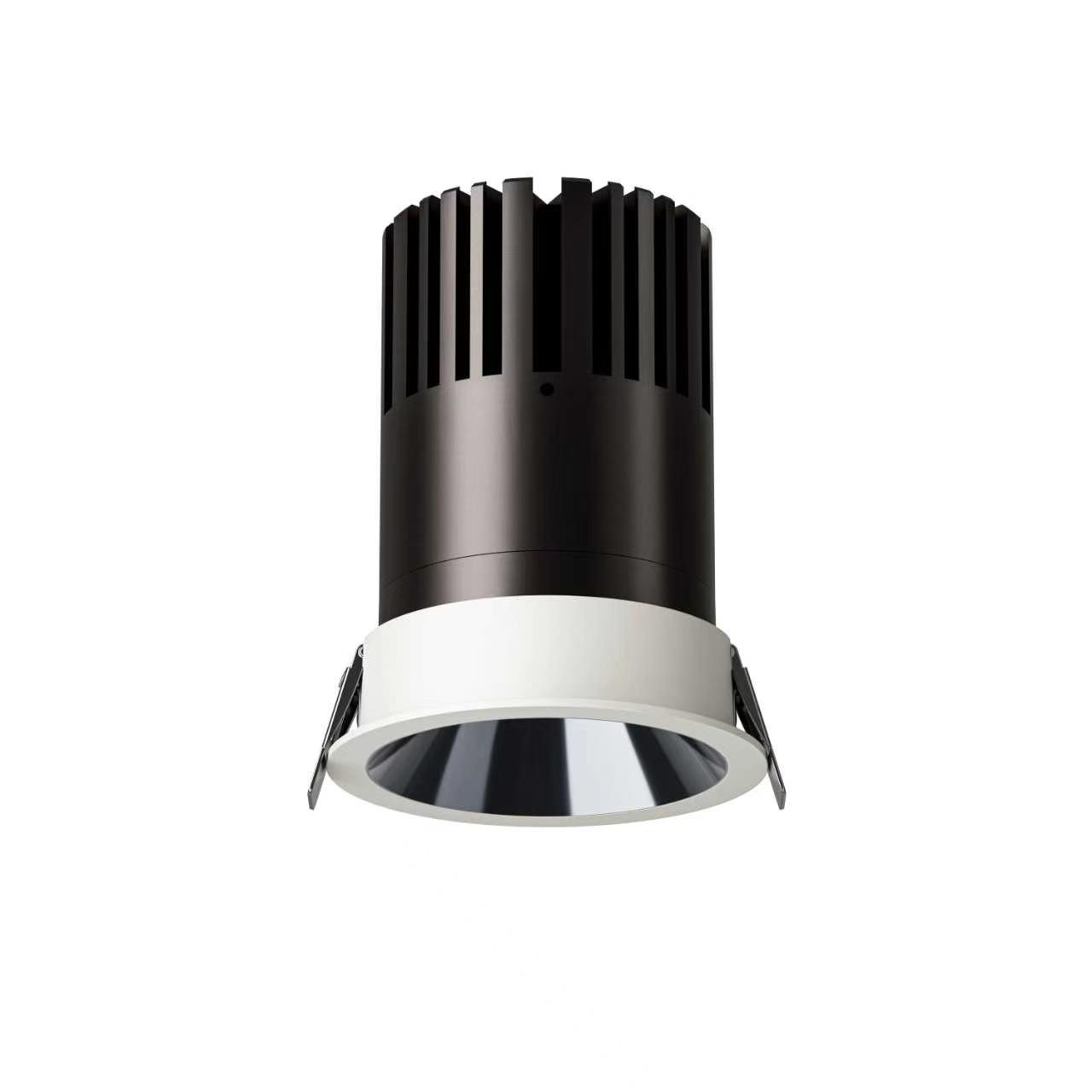

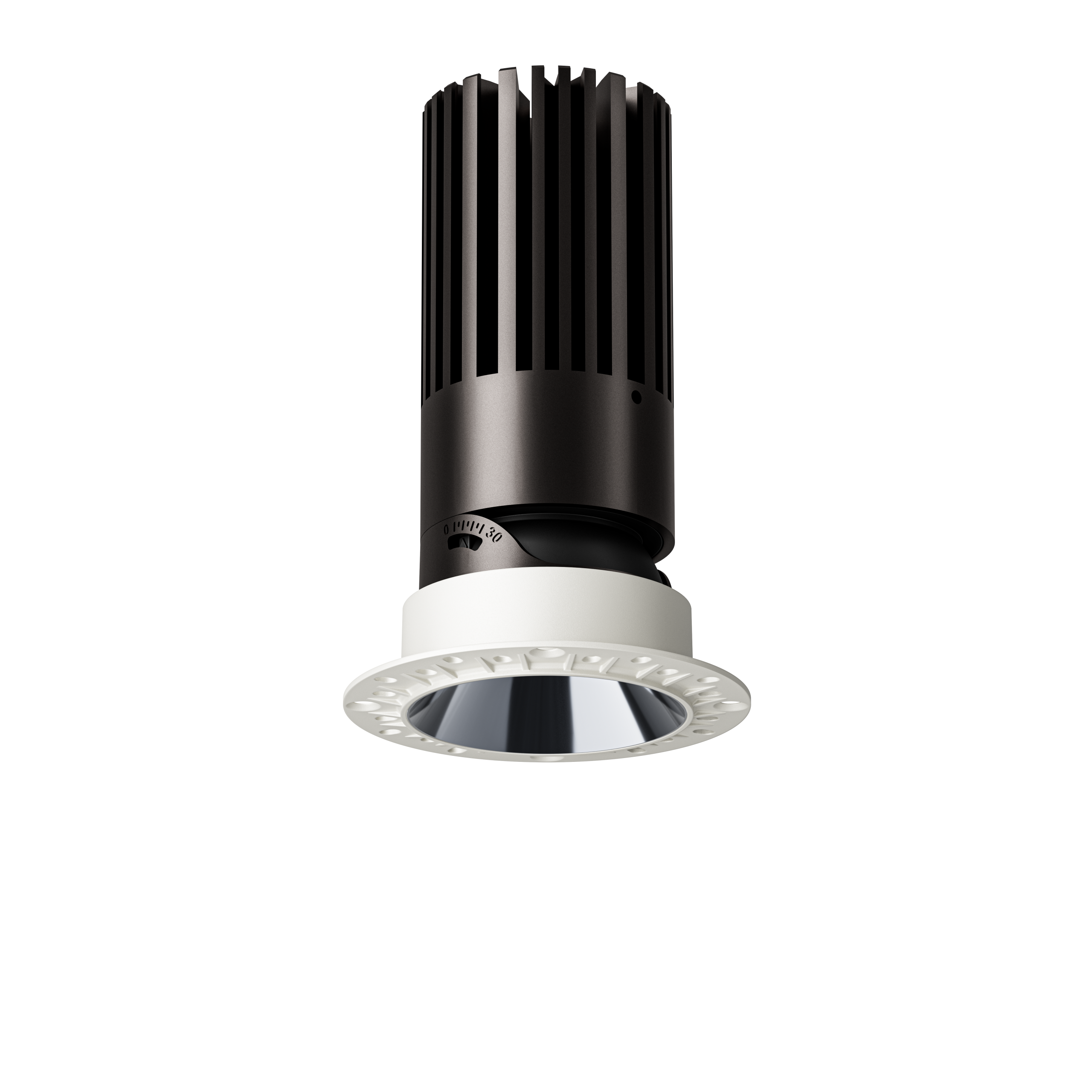

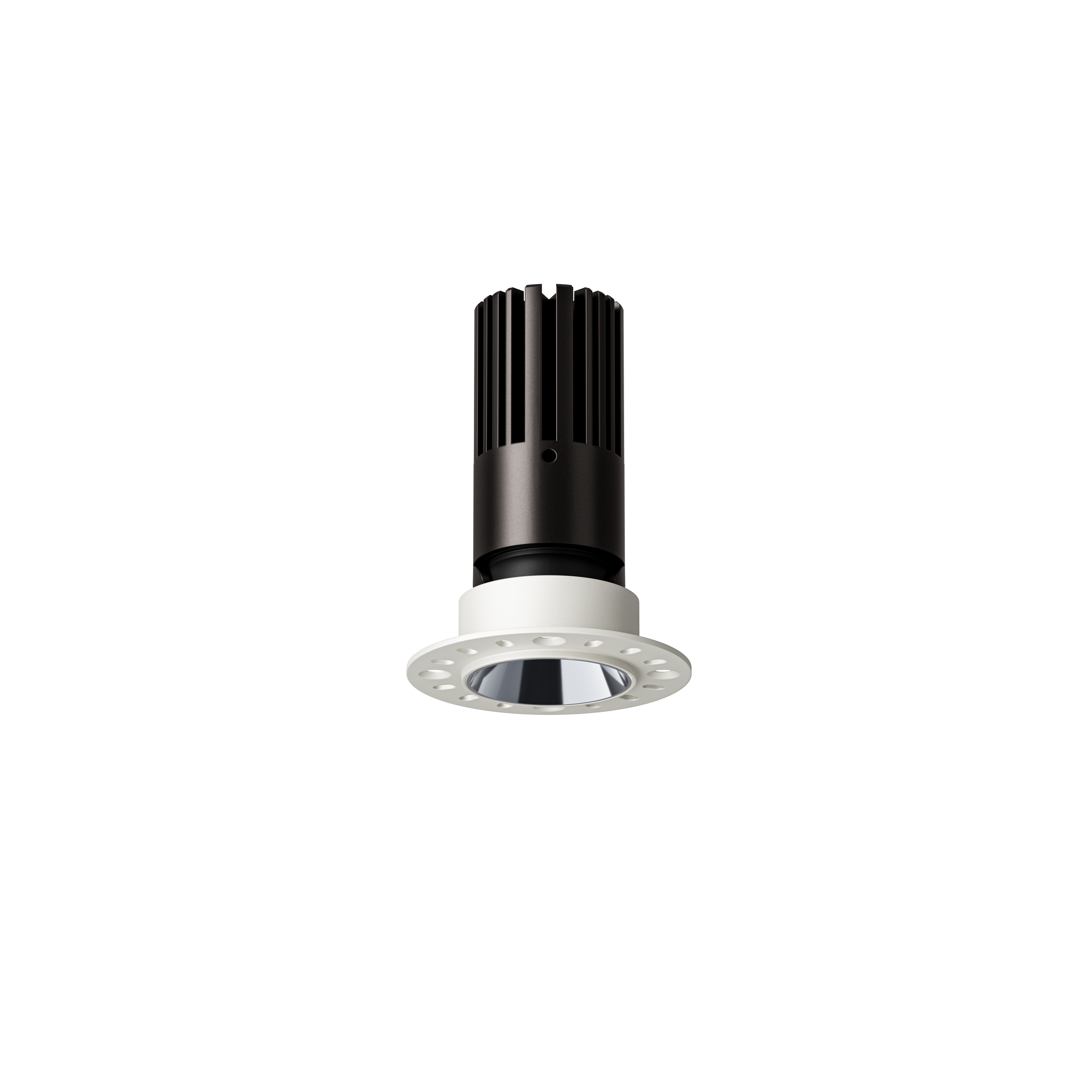

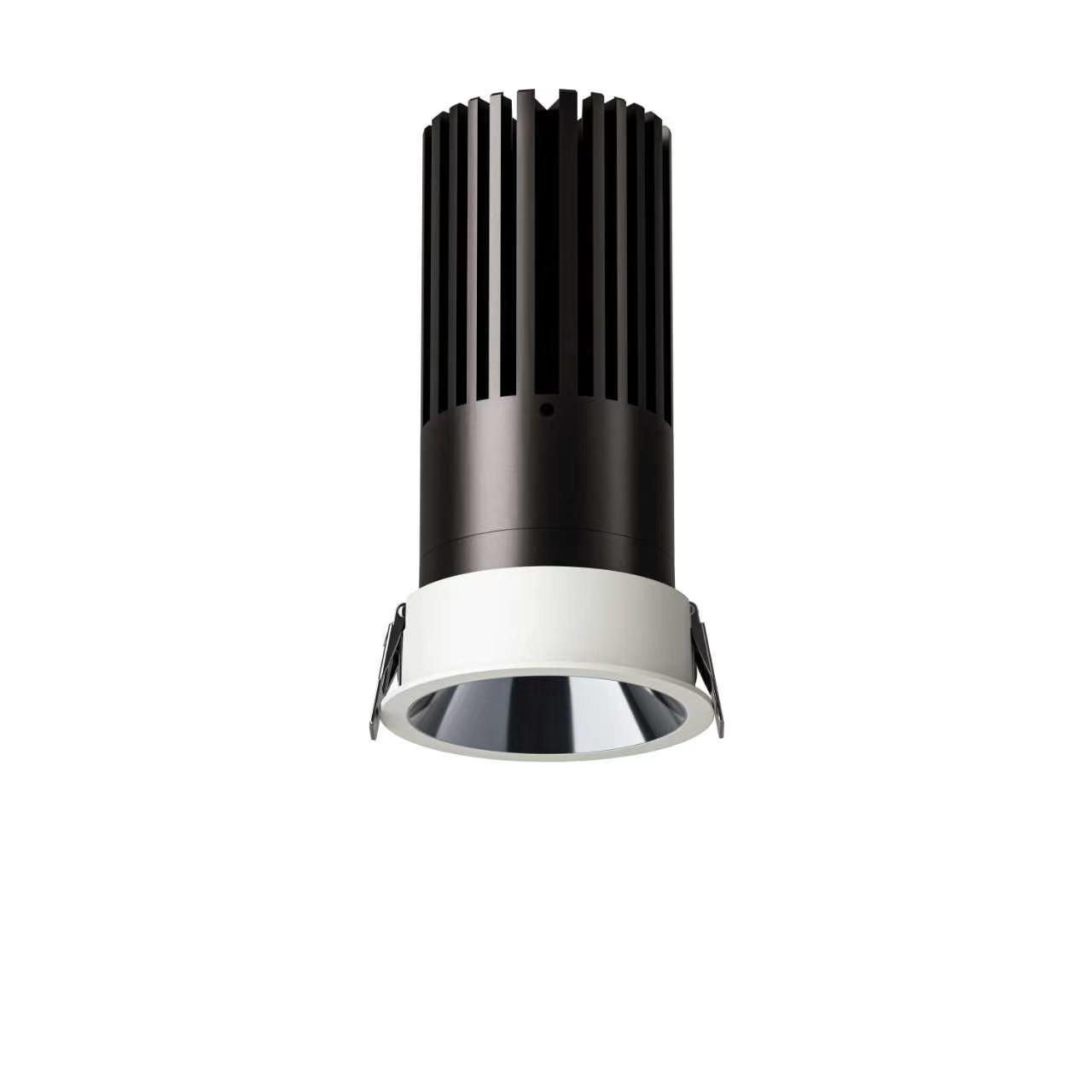

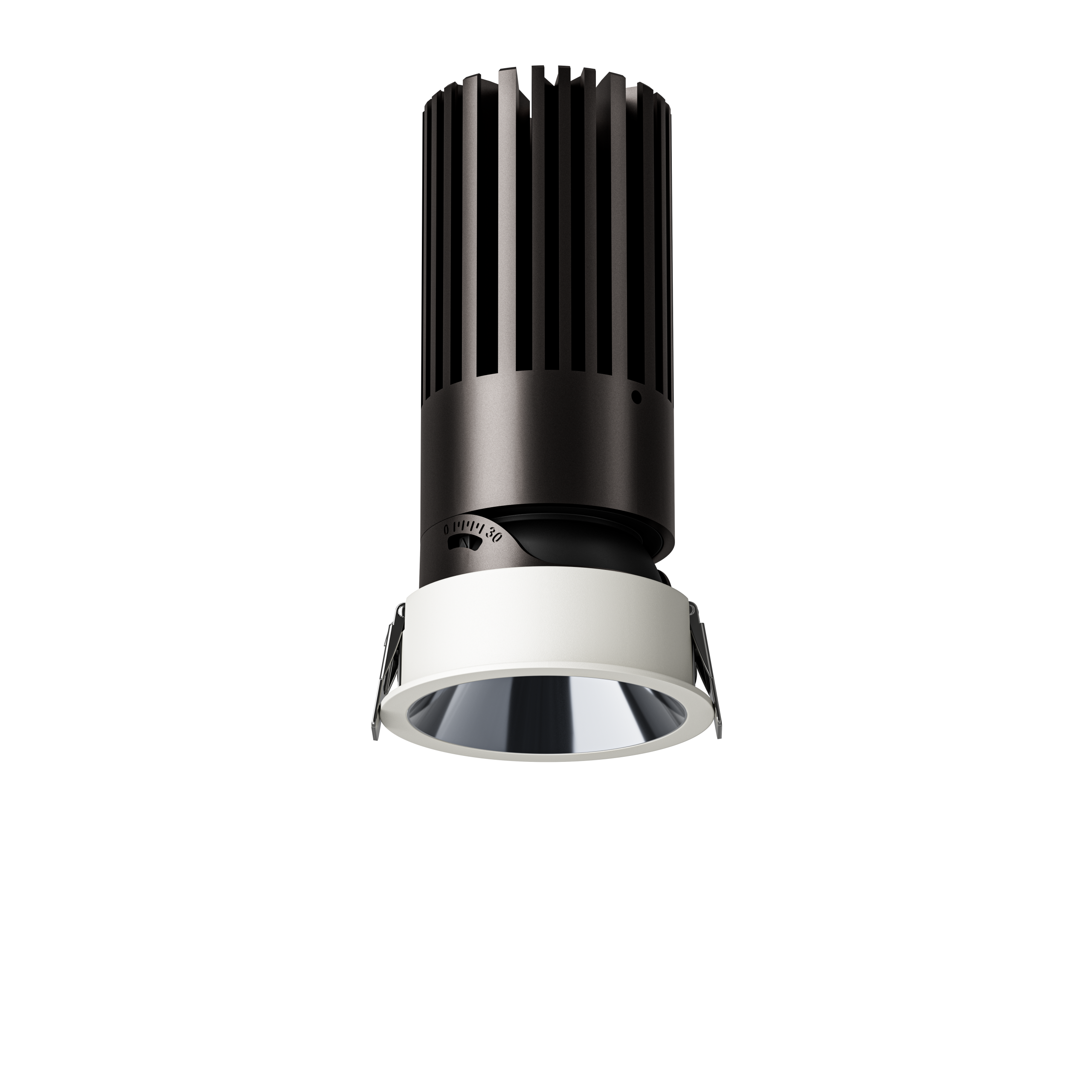

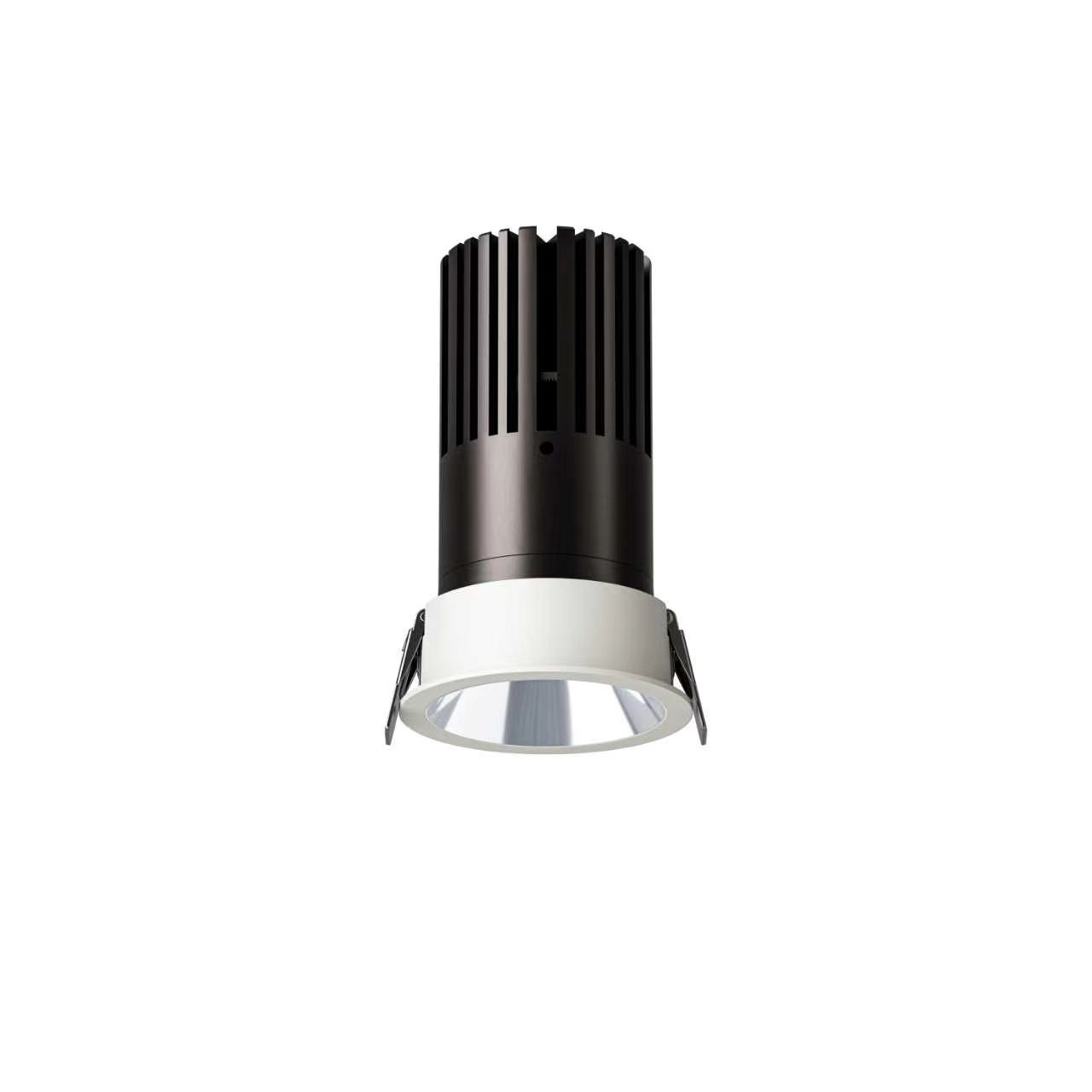

HA-cold-forged high models Spotlight

Power7W/   10W/   15W/   20W/   30W/   35W/
Beam Angle15° / 24° / 36° / 50°
Cut Size∅35mm   ∅45mm   ∅55mm   ∅65mm   ∅75mm   ∅95mm
DimmingNon-dim, Phase dim, 0/1-10V, DALI, Bluetooth, ZigBee Frequency
Frequency50/60Hz
LED ChipCOB
Installation MethodRecessed
Light Efficiency85.7lm/W
CCTTunable
CRI≥90
UGR< 11
SDCM<3
IP LevelIP20
MaterialAluminum/PC
ColorBlack and White

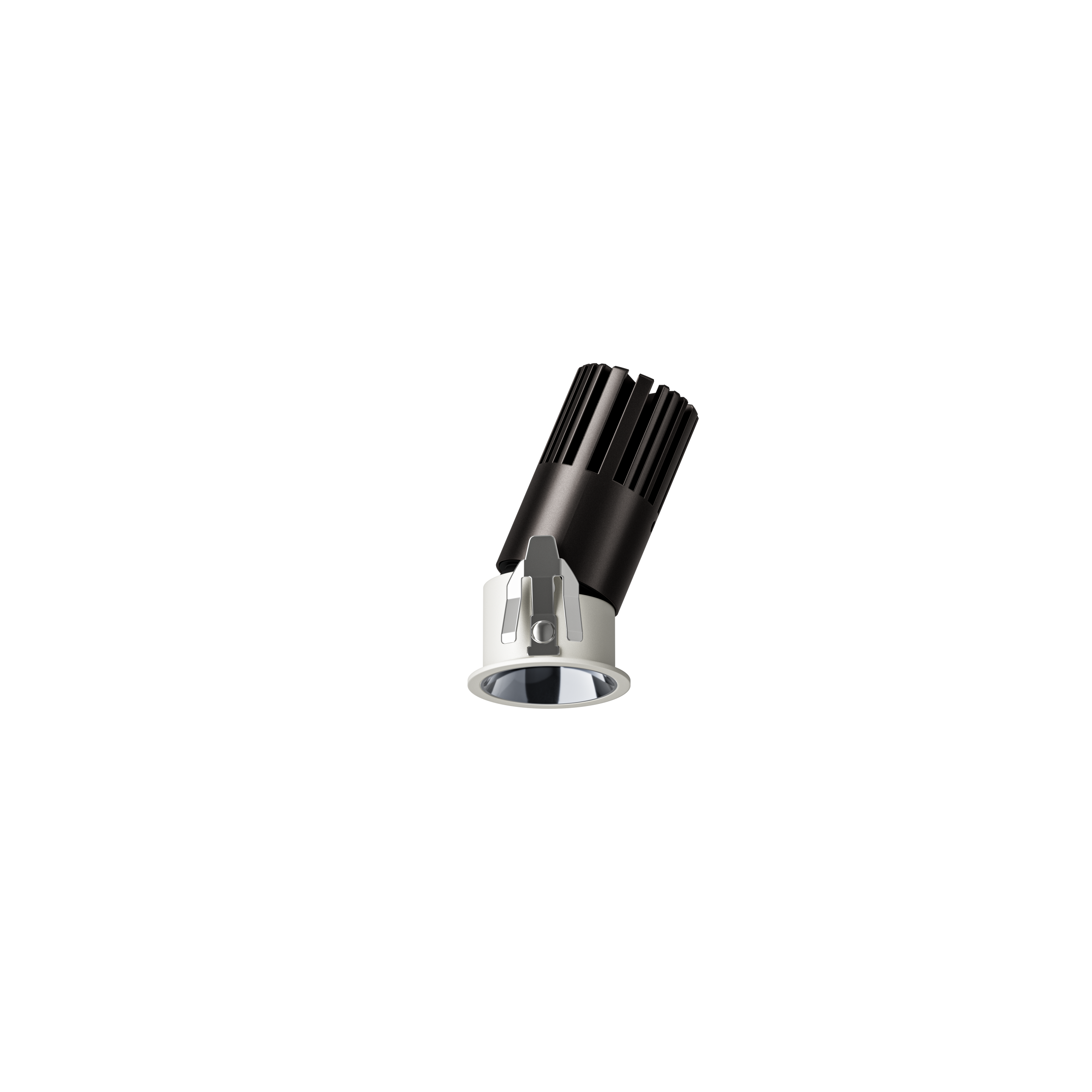

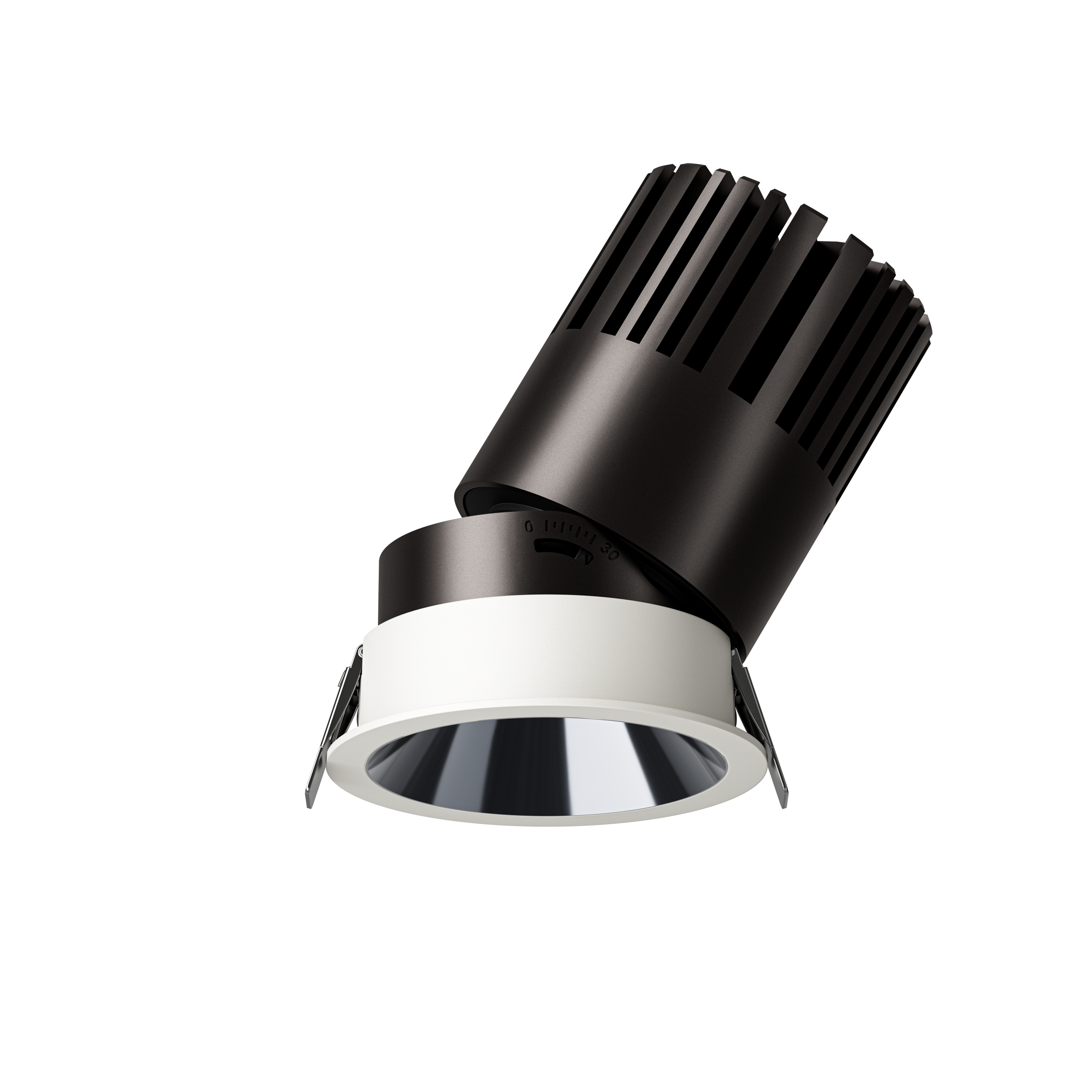

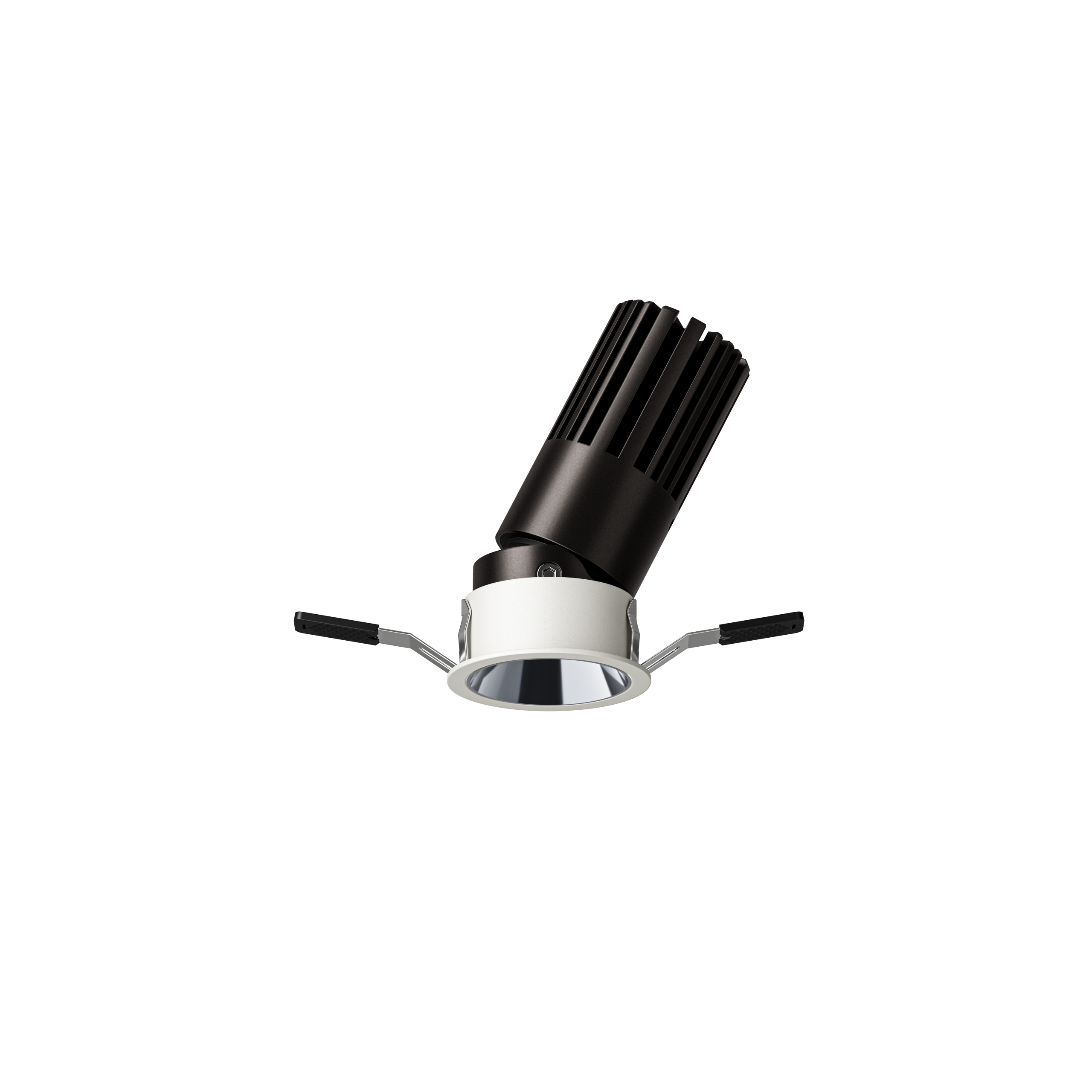

Adjustability355°Rotation,28° Tilting

请提供数量、吊顶条件、色温、光束角和调光需求,以便更快获得推荐。

产品系列Regular Spotlight

描述

This product boasts powerful functional performance and serves as a core offering for engineering projects.

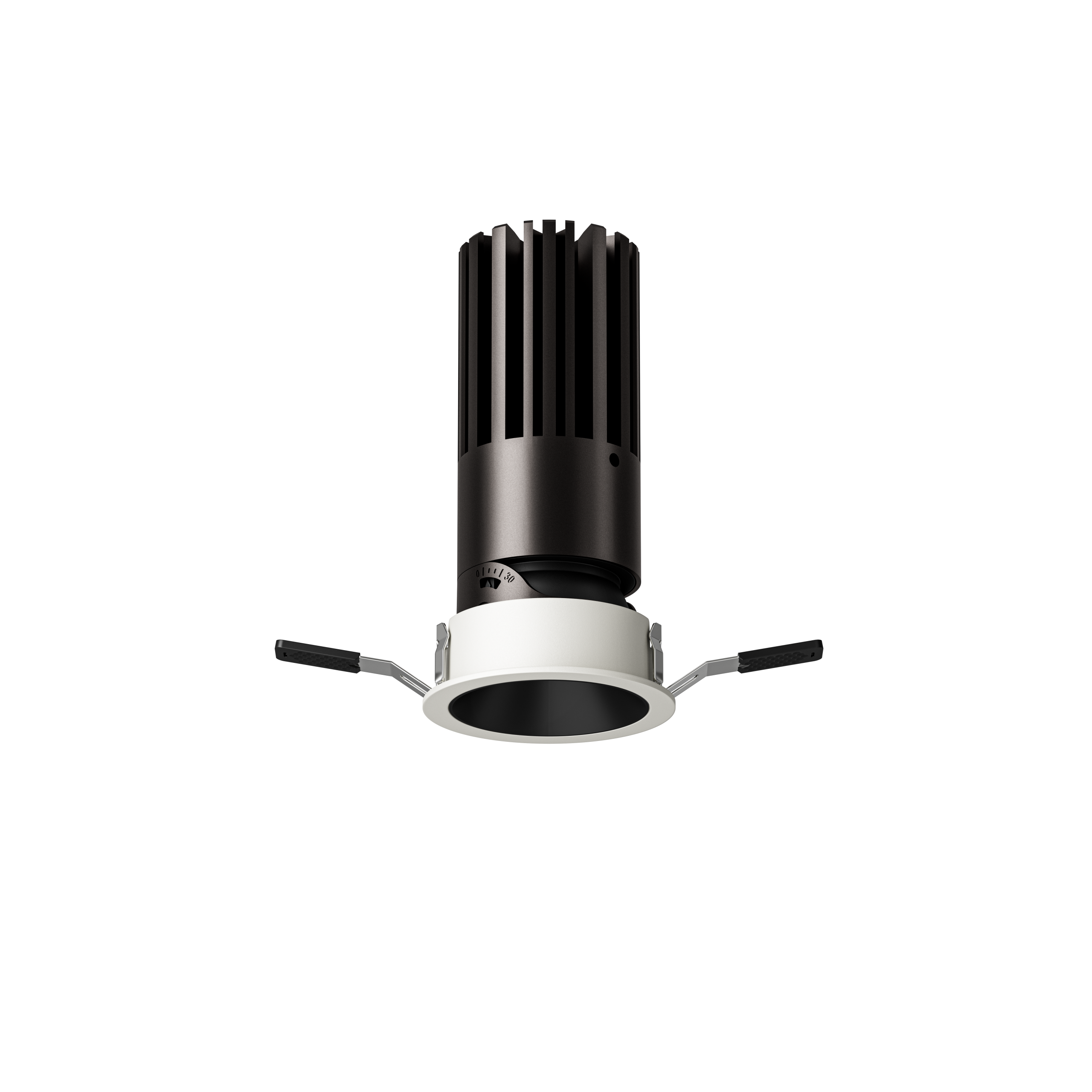

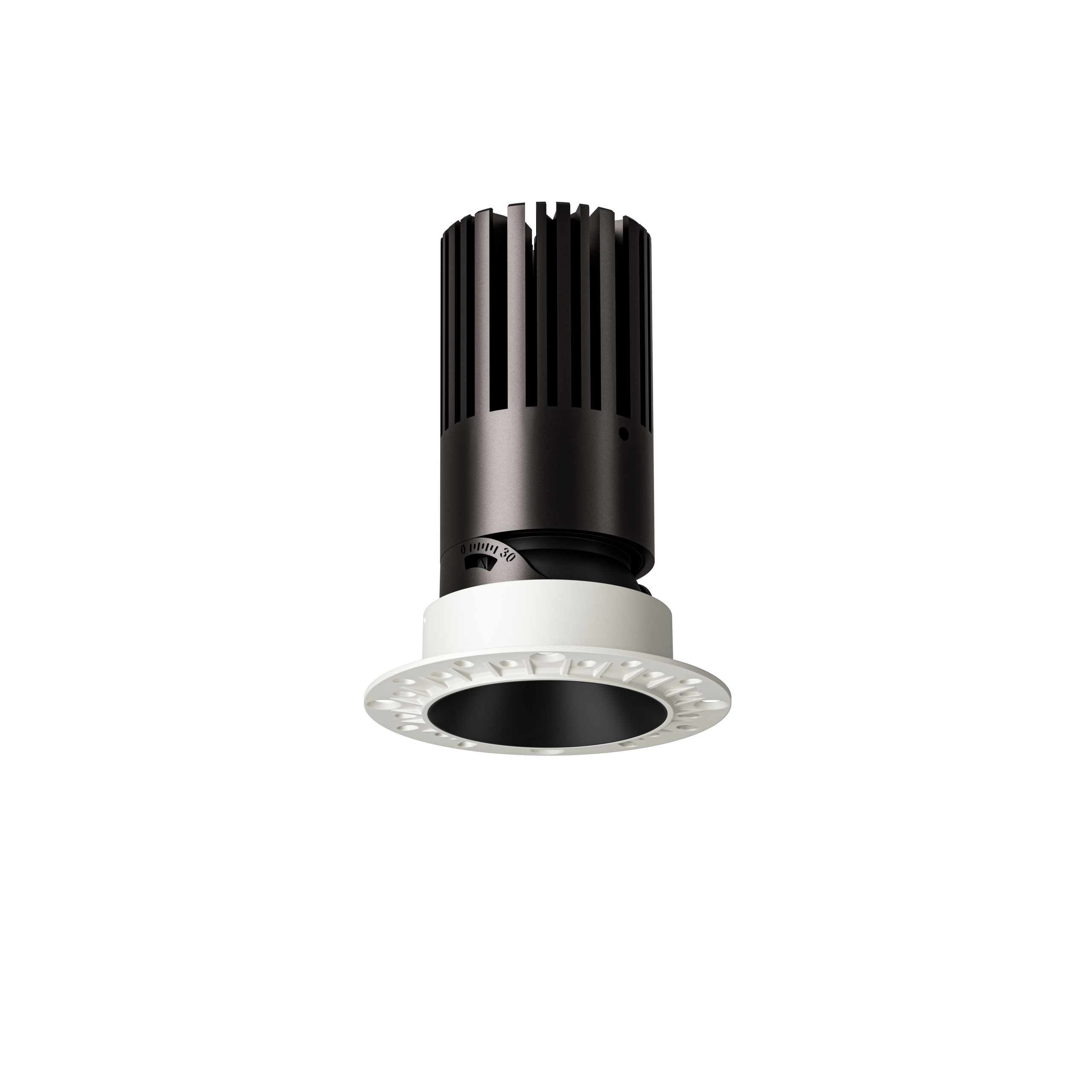

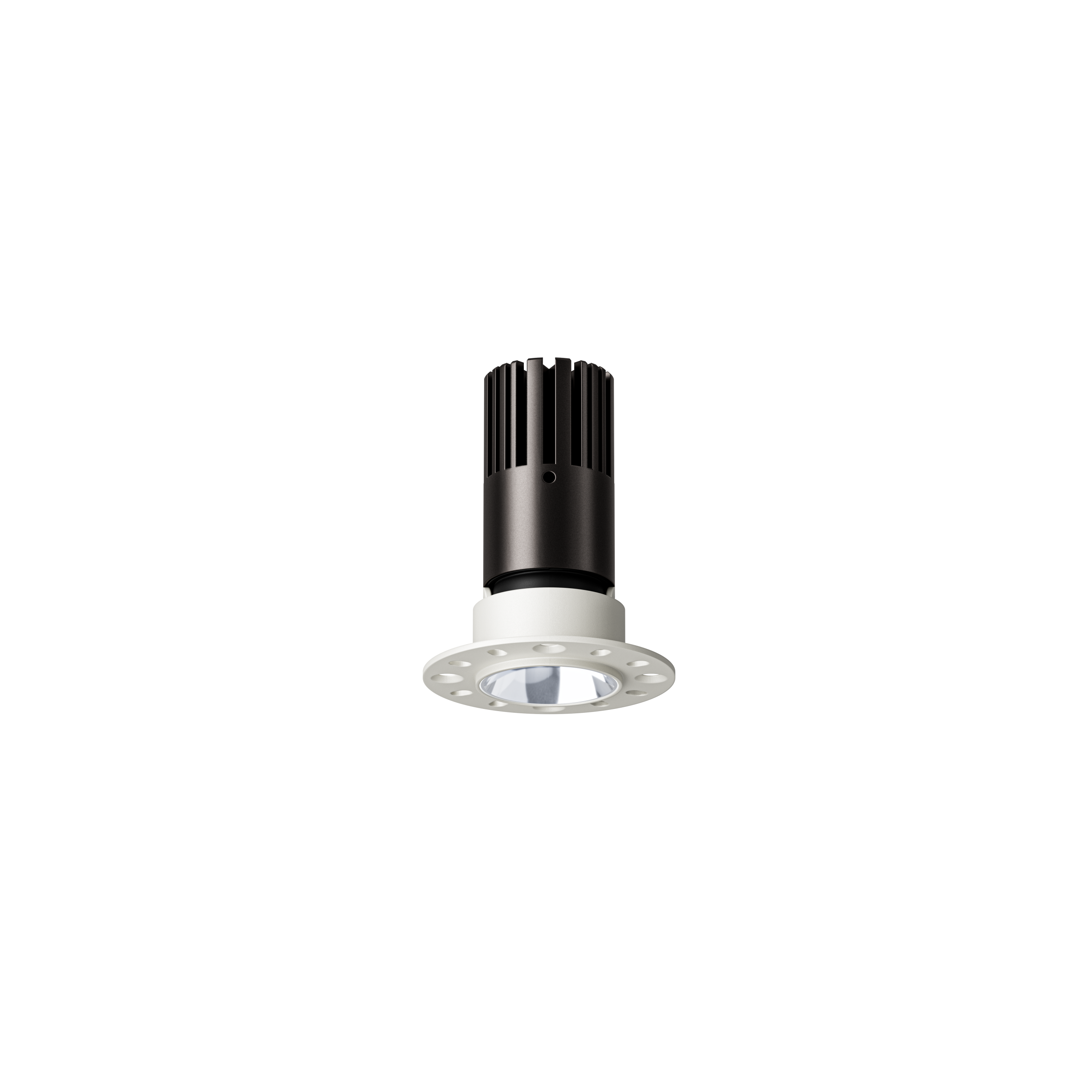

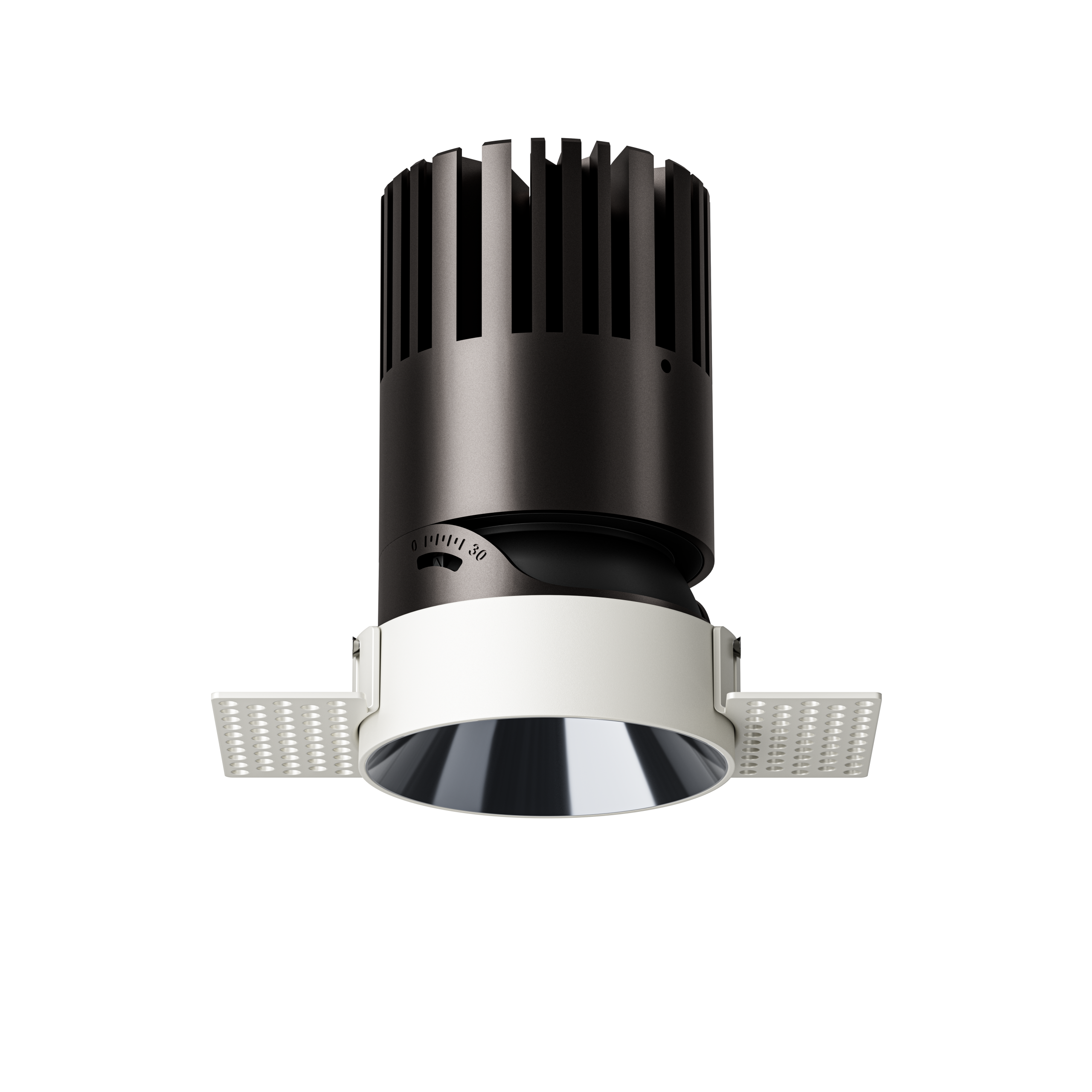

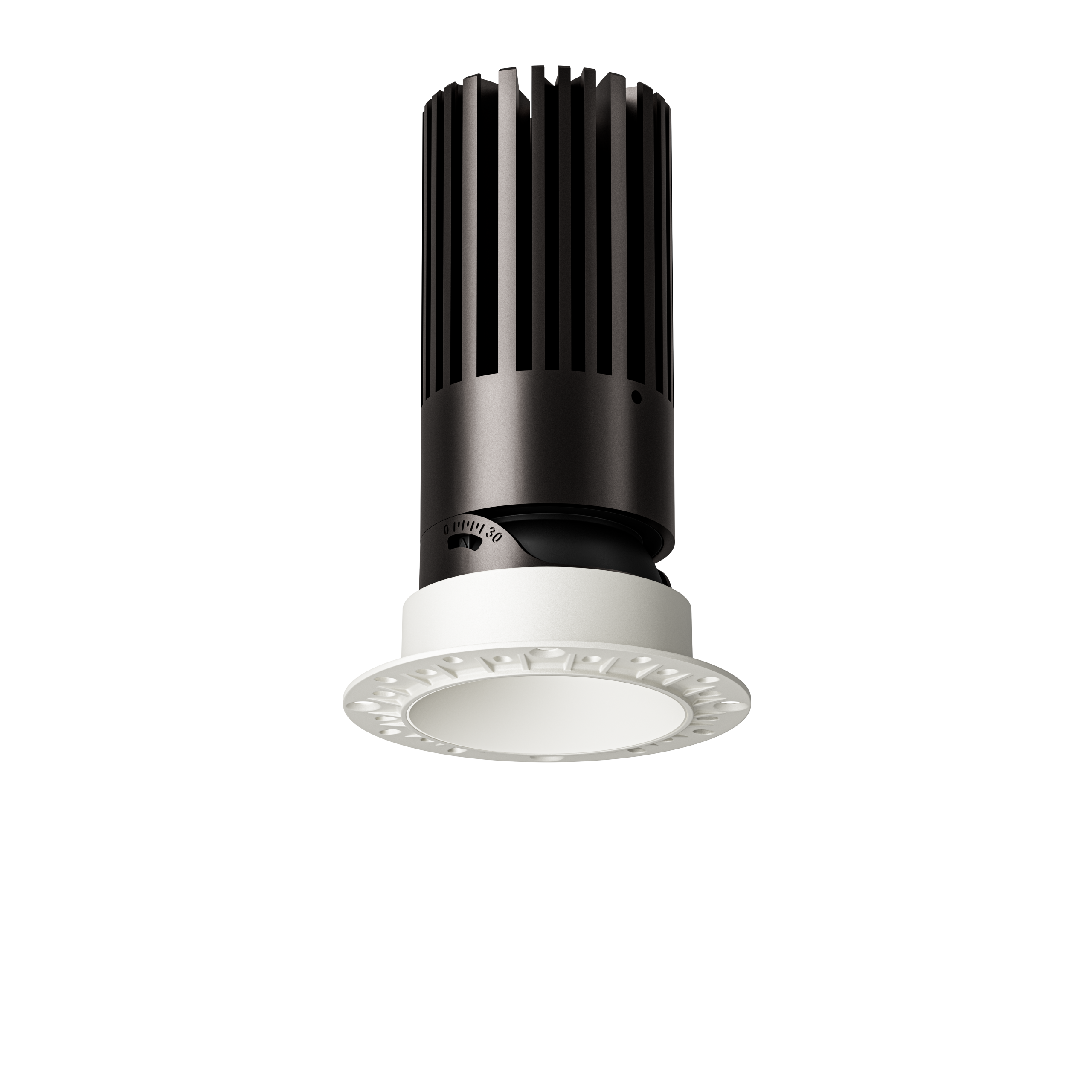

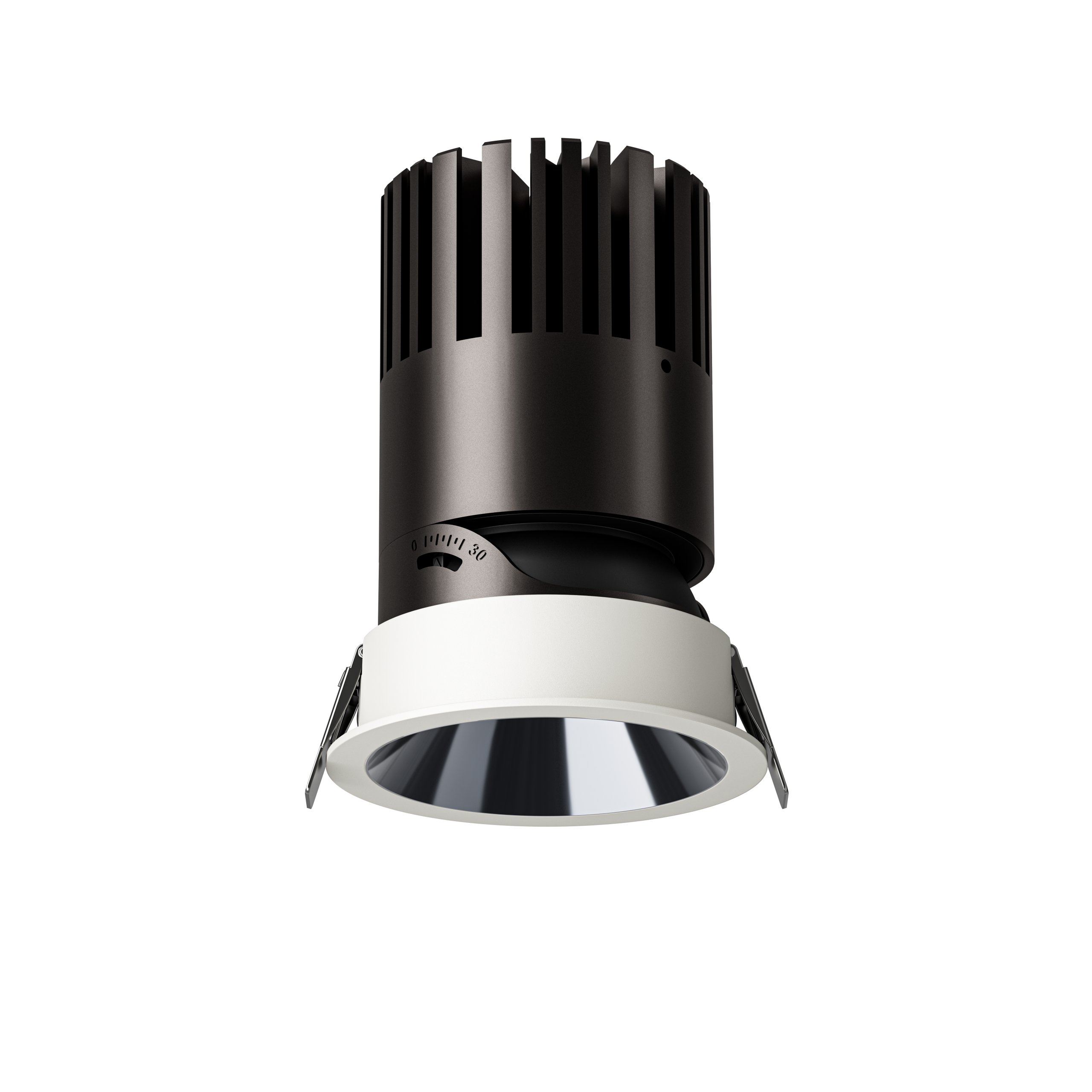

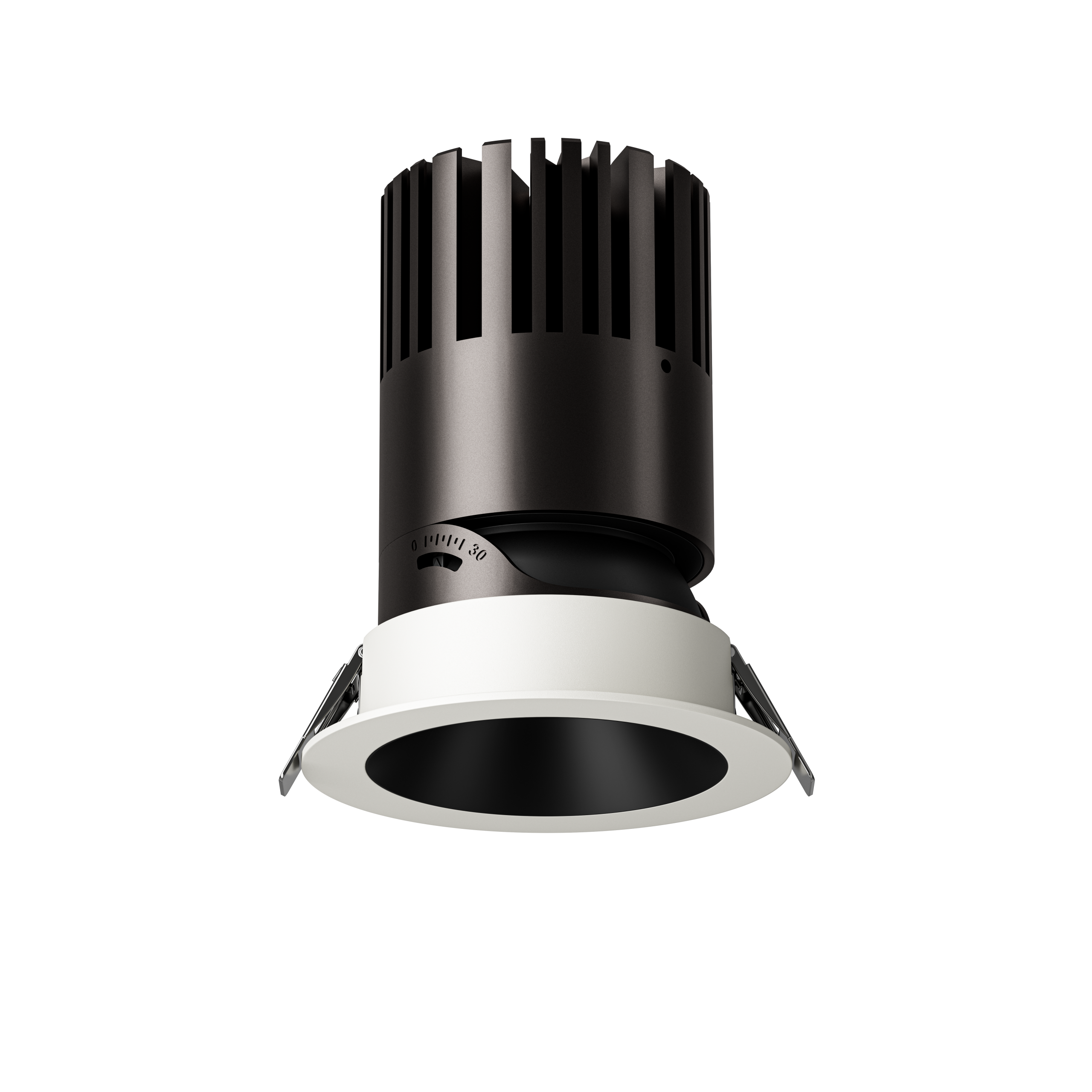

It comes in six cutout sizes: ∅35mm,∅45mm, ∅55mm, ∅65mm, ∅75mm and ∅95mm.

Fabricated by cold forging and finished with an eco-friendly, innovative spray paint coating, the radiator achieves excellent heat dissipation capacity.
The combination of an elevated radiator housing and air convection design endows the fixture with the advantage of high power output within a small cutout aperture.

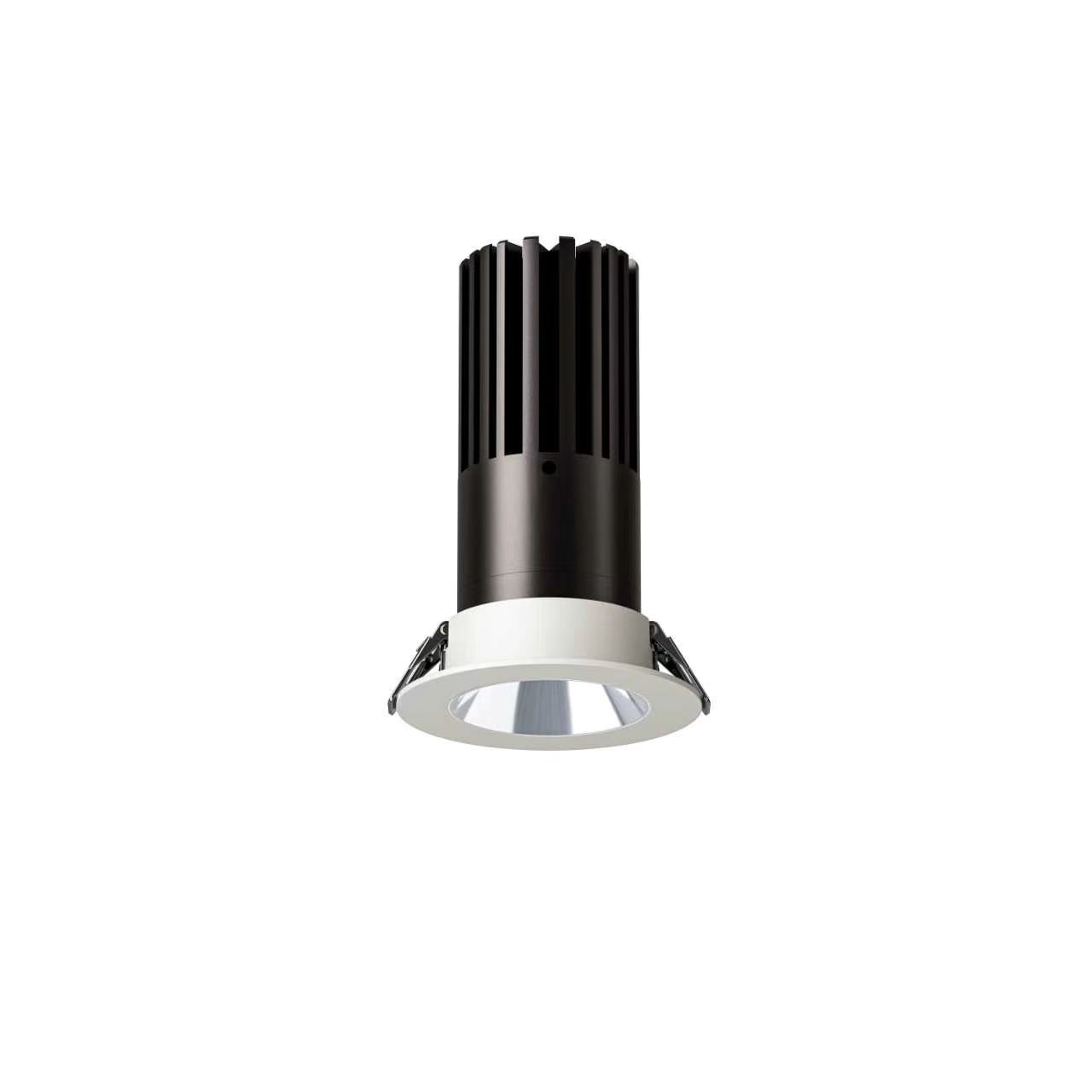

Versions for cutouts of ∅55mm and above are available in both adjustable and fixed styles.
Equipped with a wide selection of face rings, extended designs for various anti-glare reflectors, effective light leakage prevention, user-friendly pull rings, as well as optional honeycomb grilles and optical lenses, this series ranks among the most popular lighting solutions for engineering projects at present.
