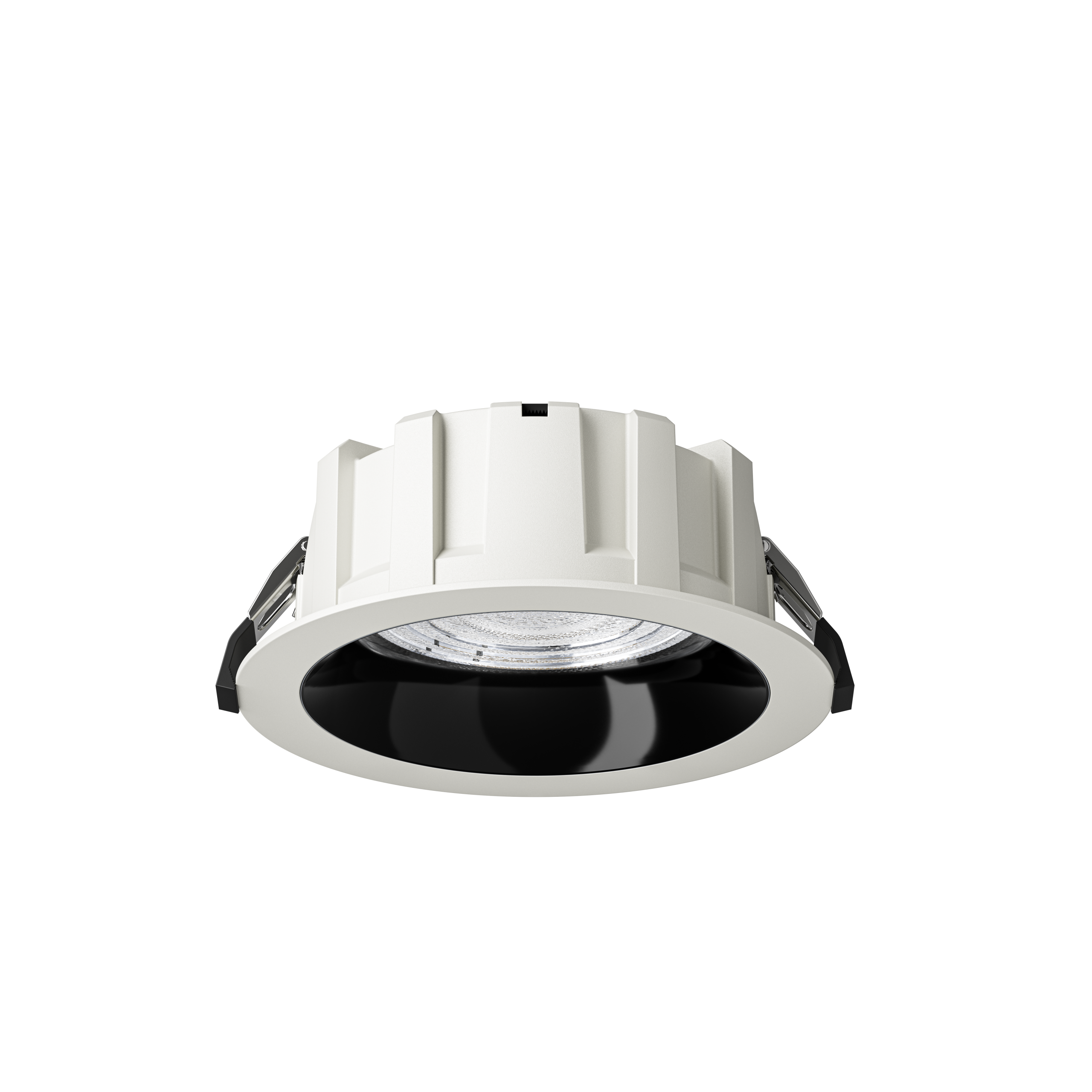

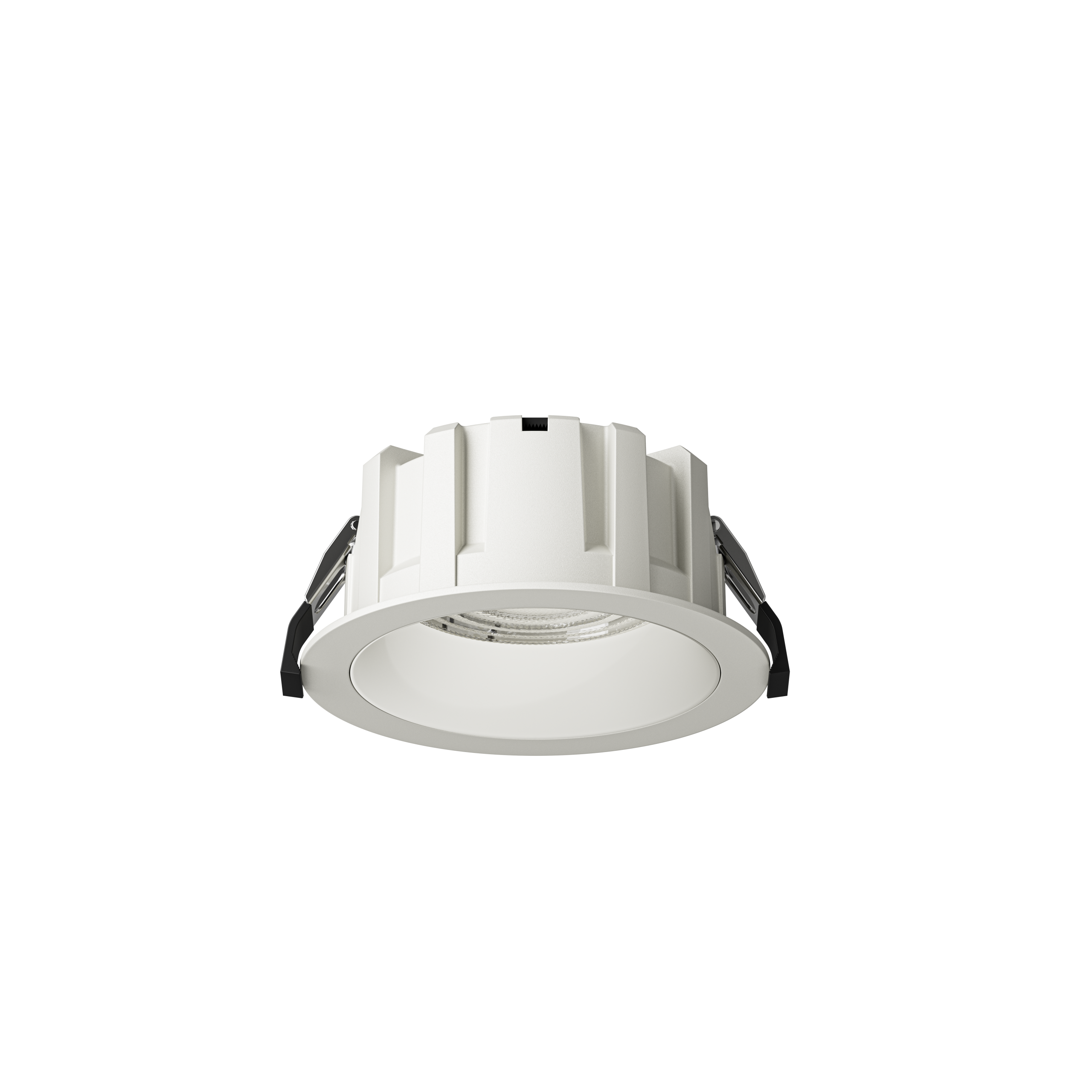

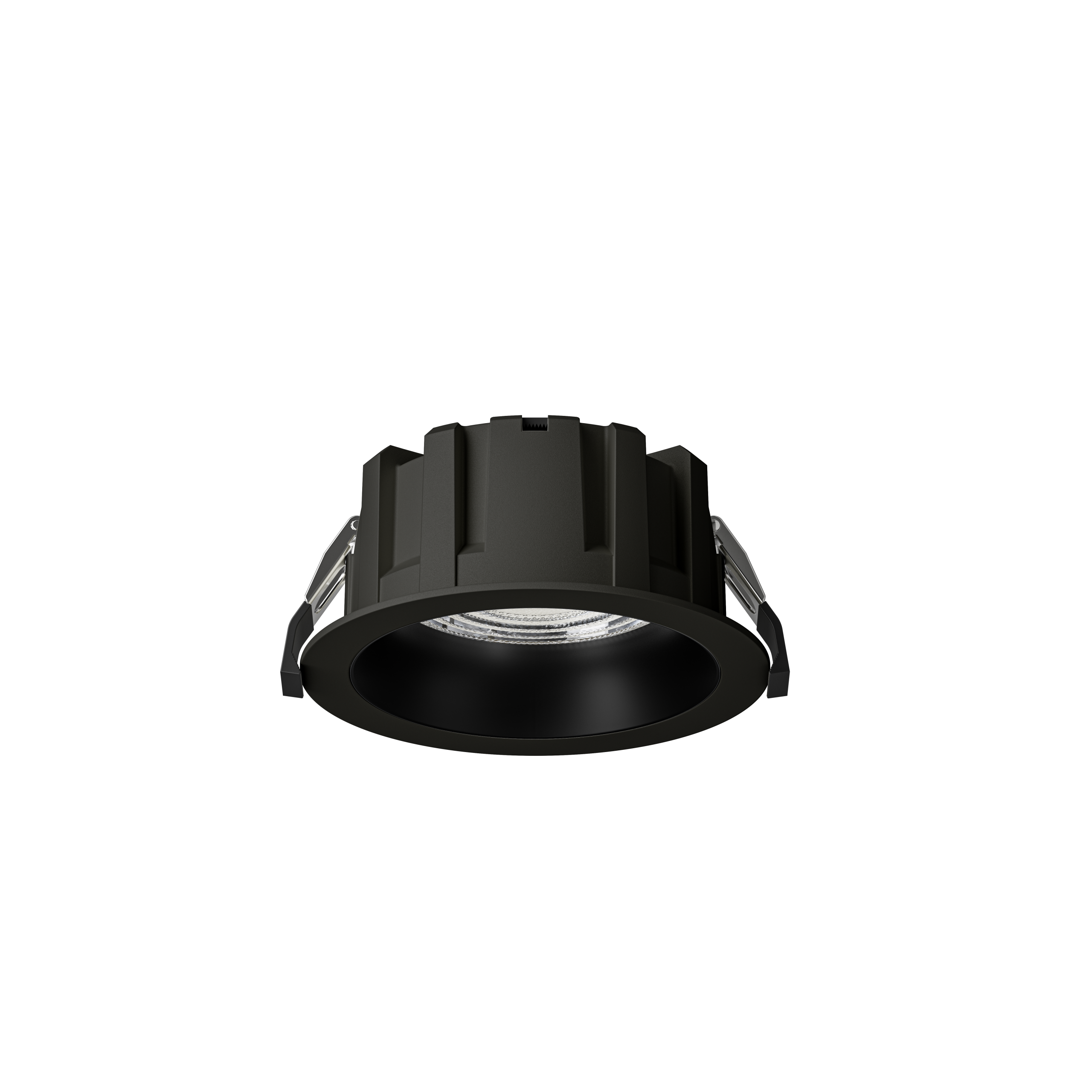

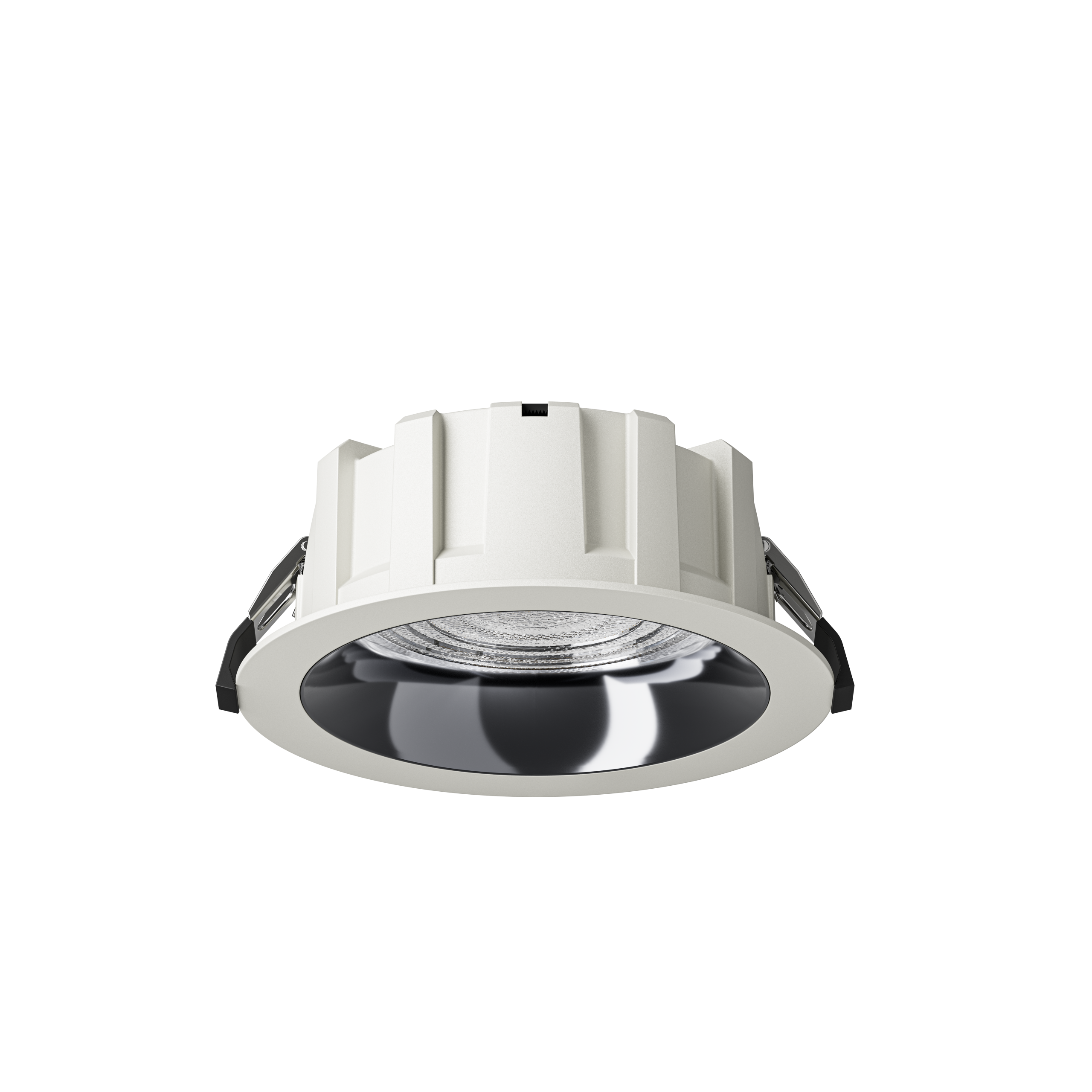

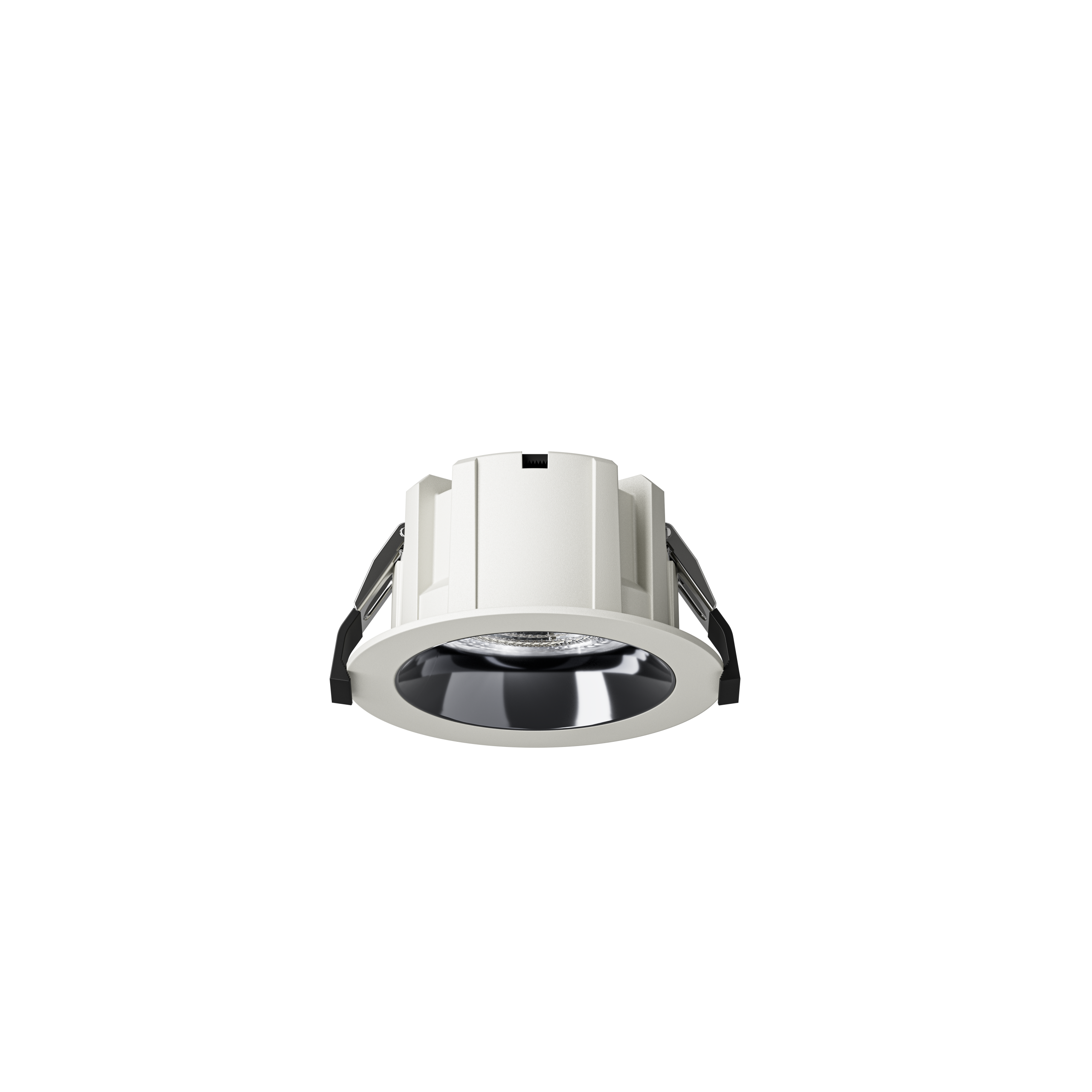

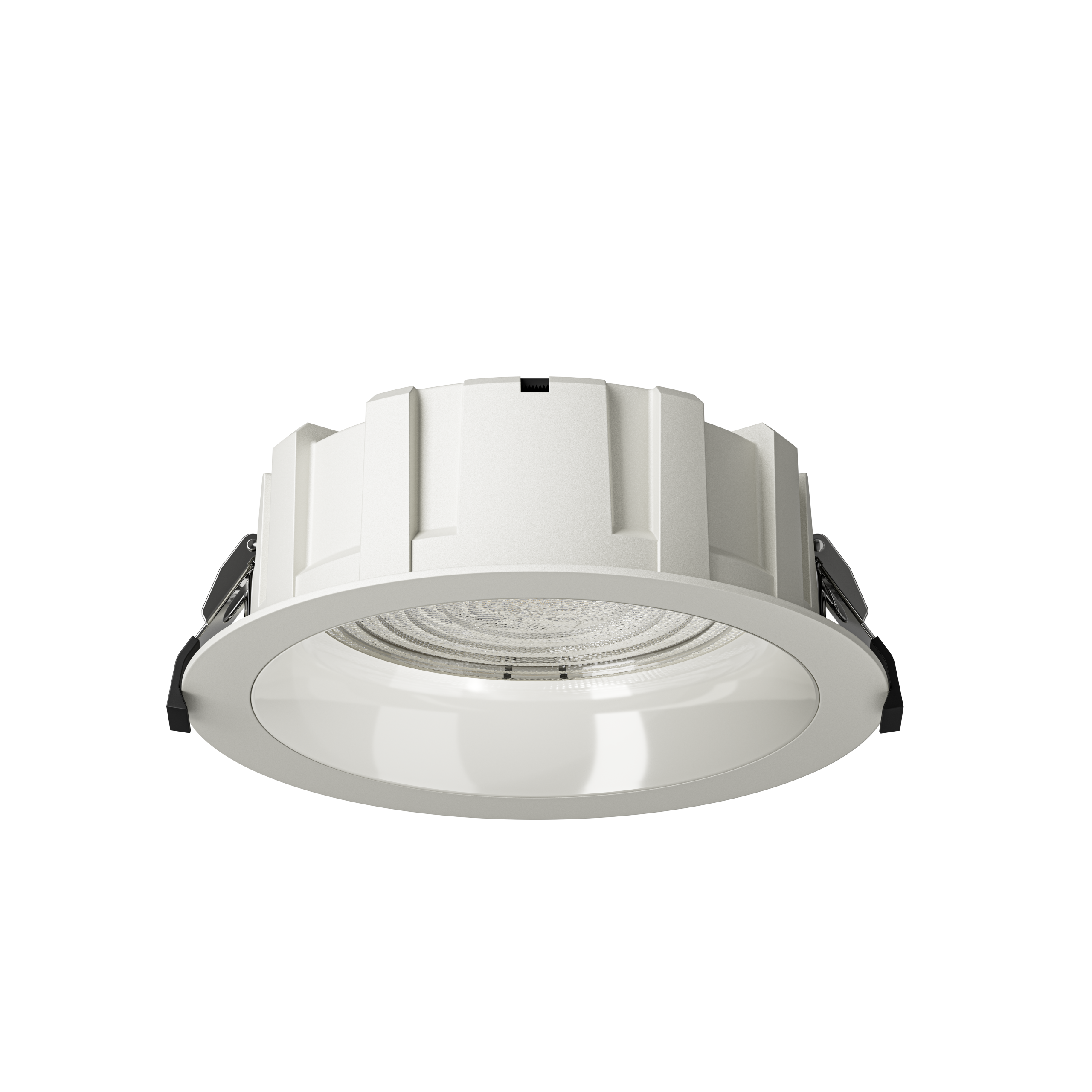

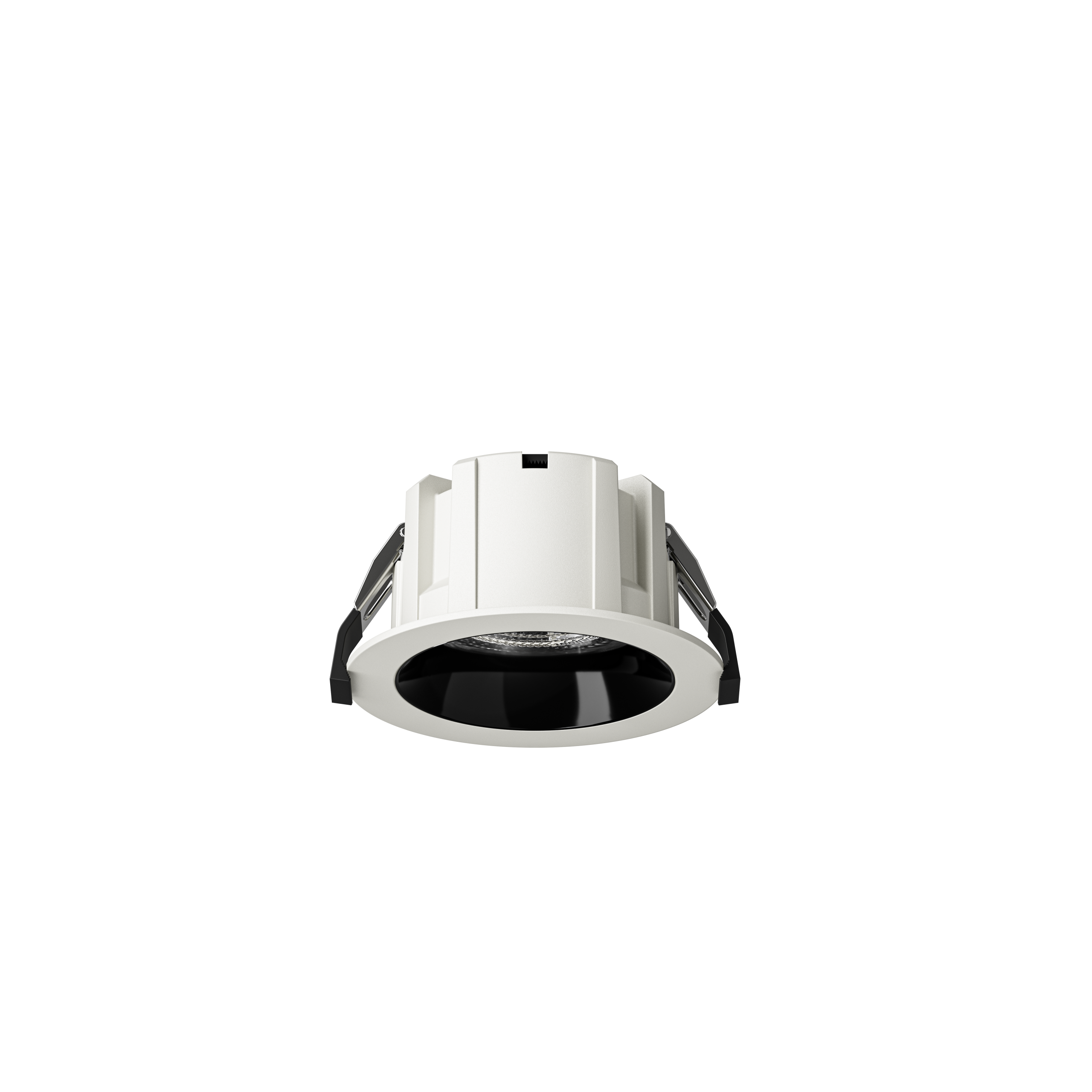

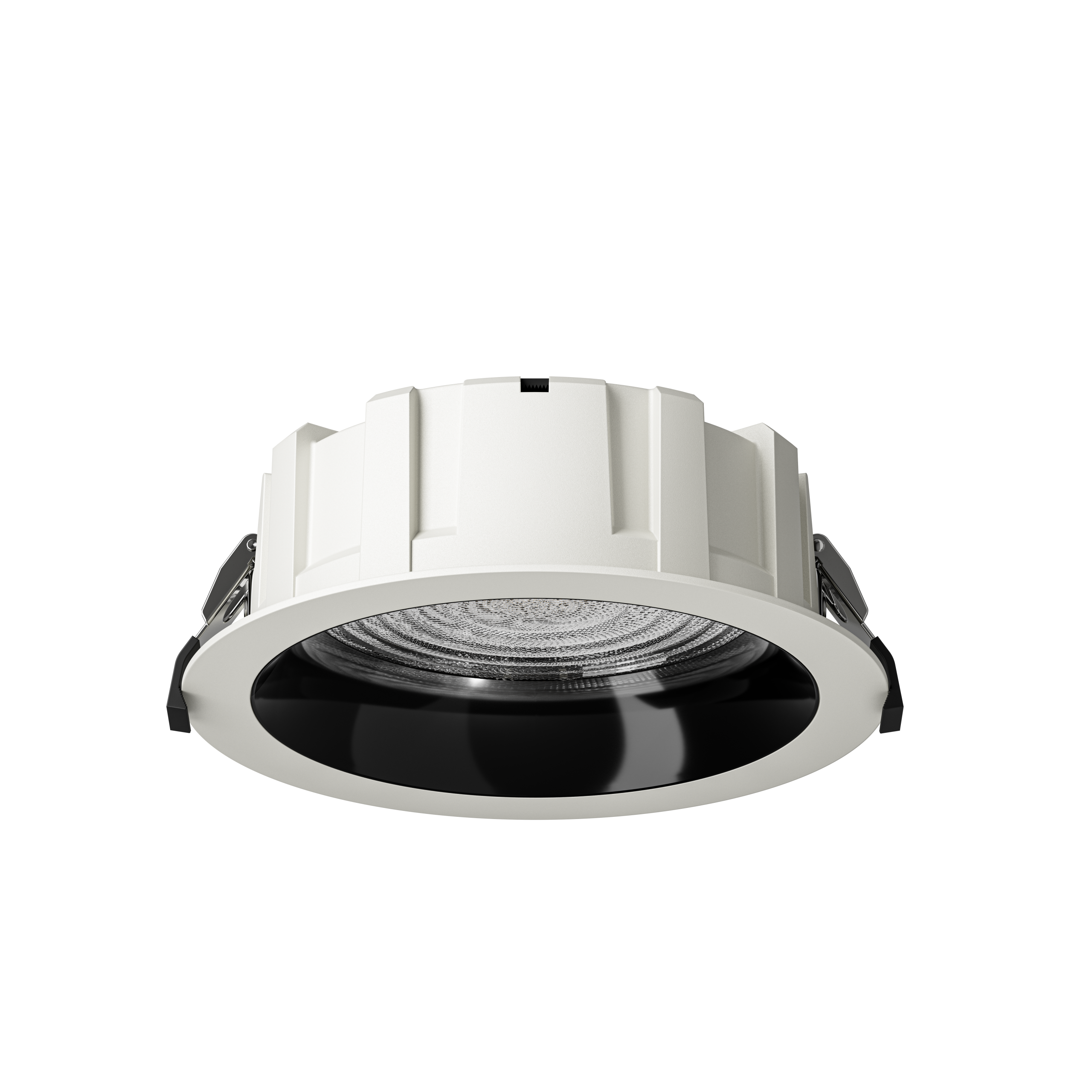

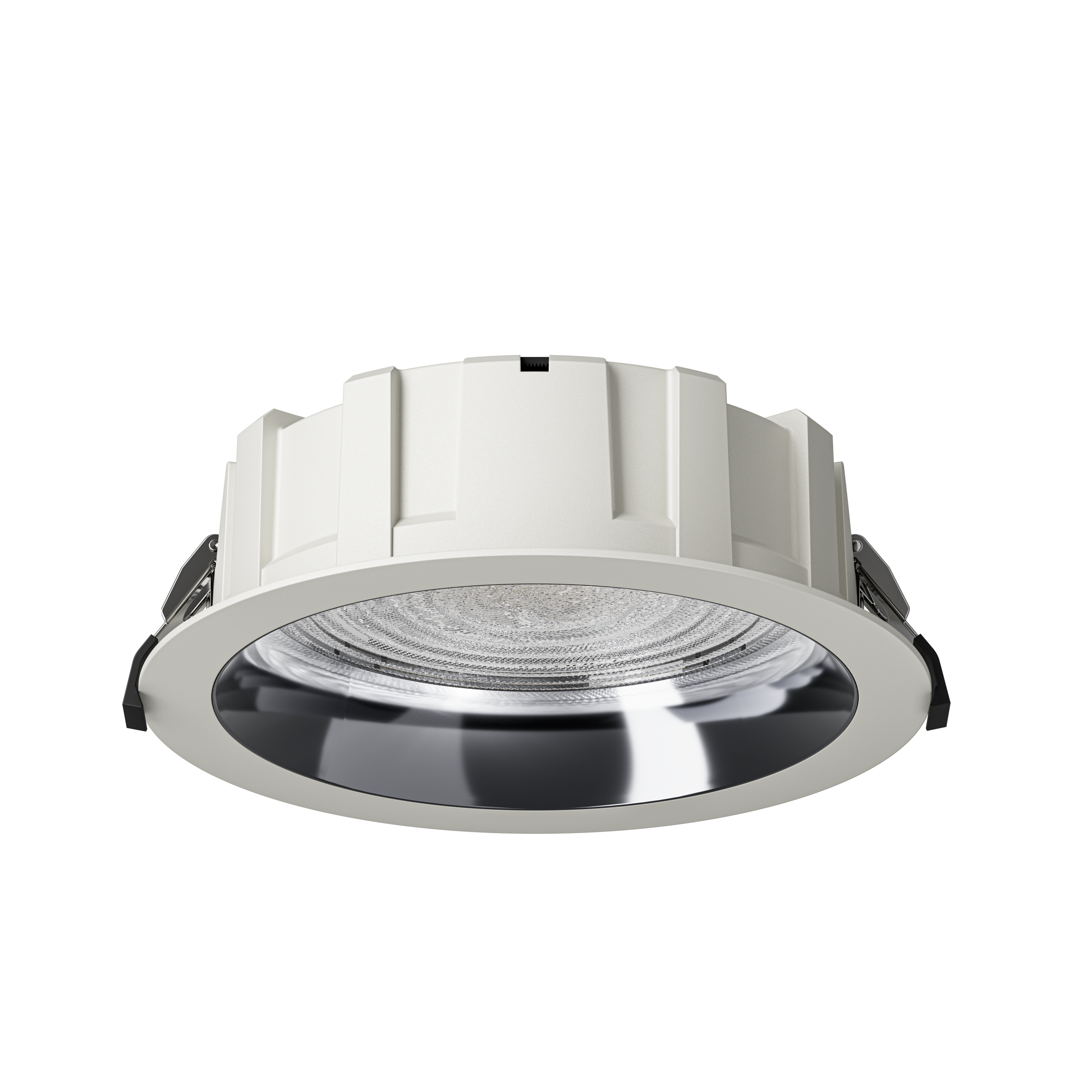

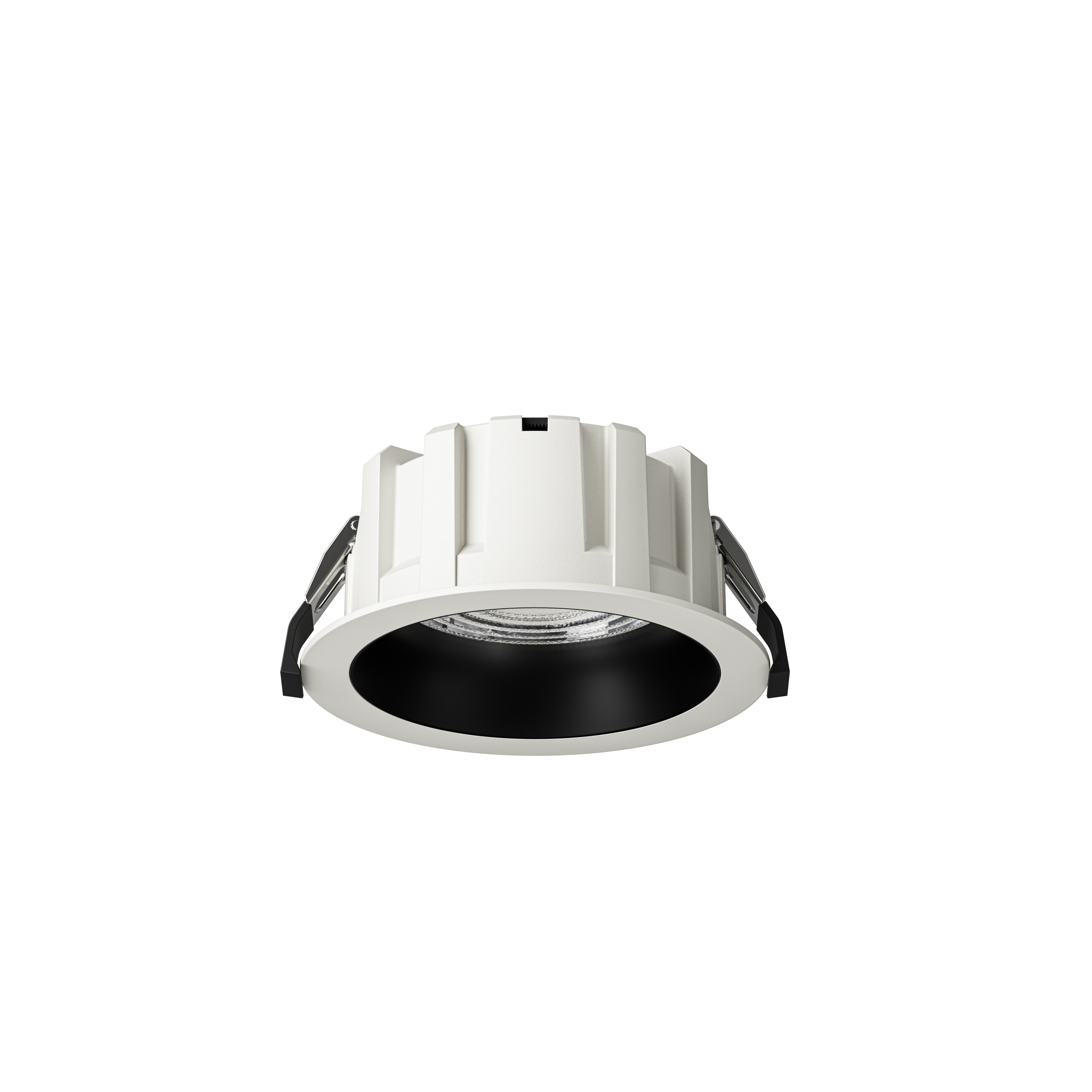

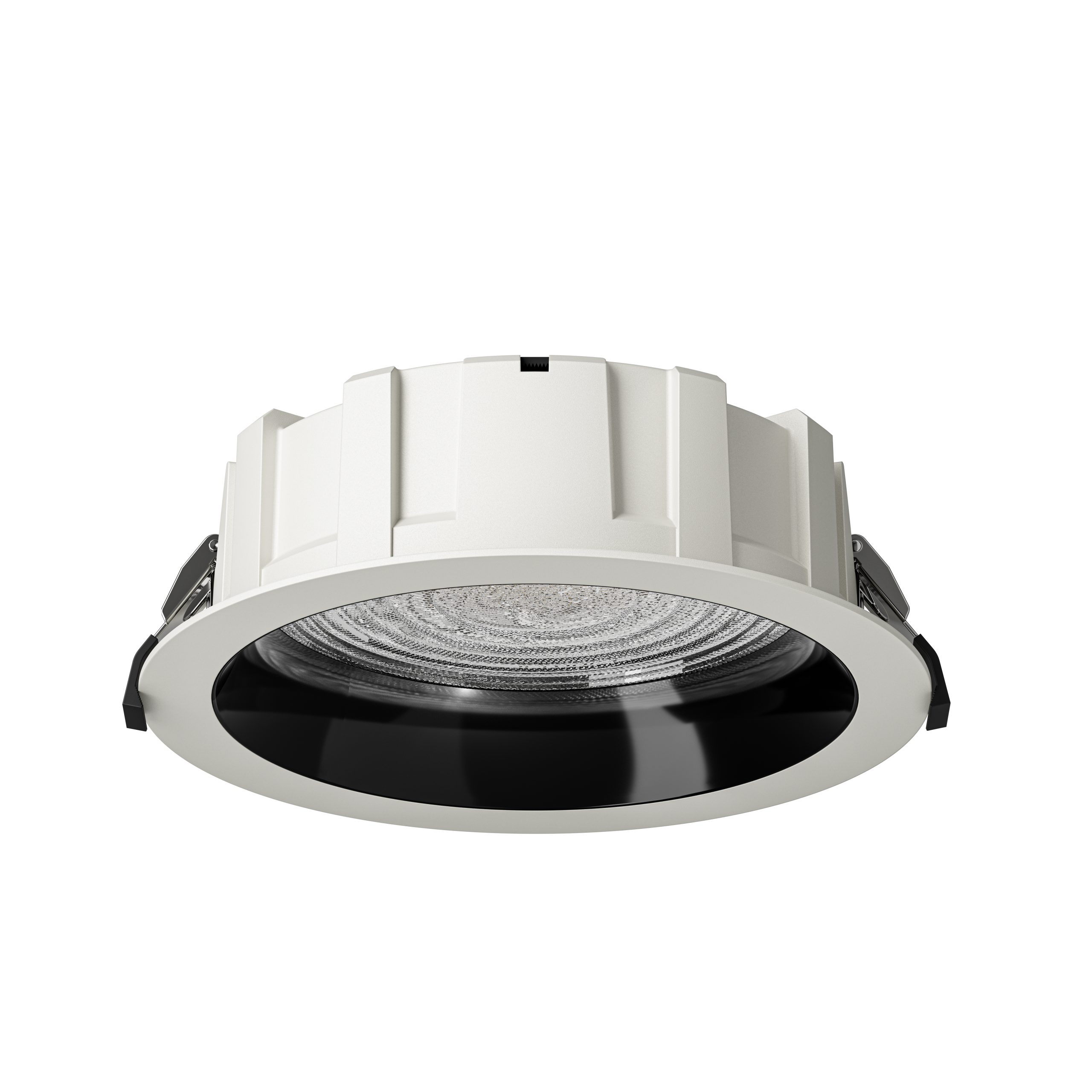

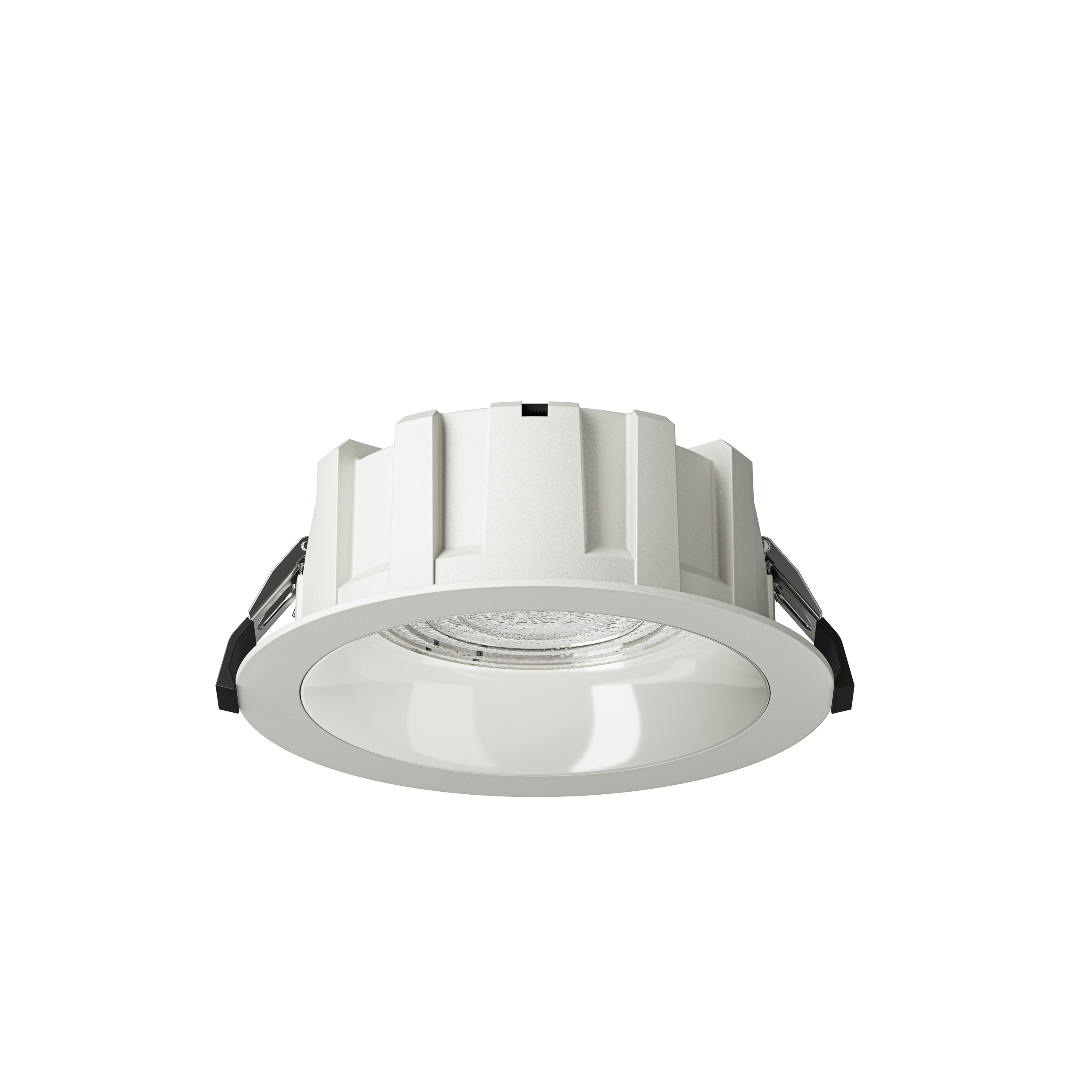

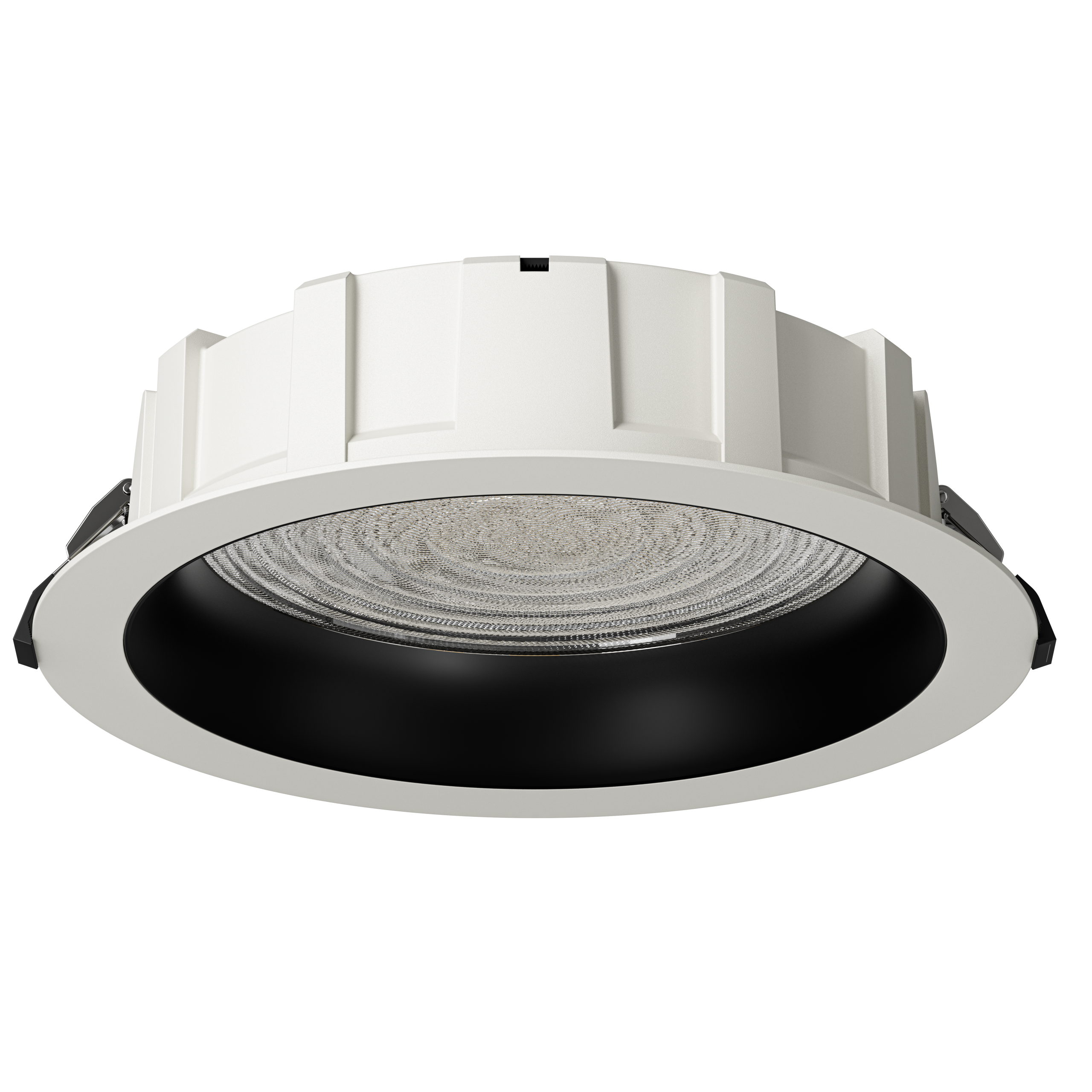

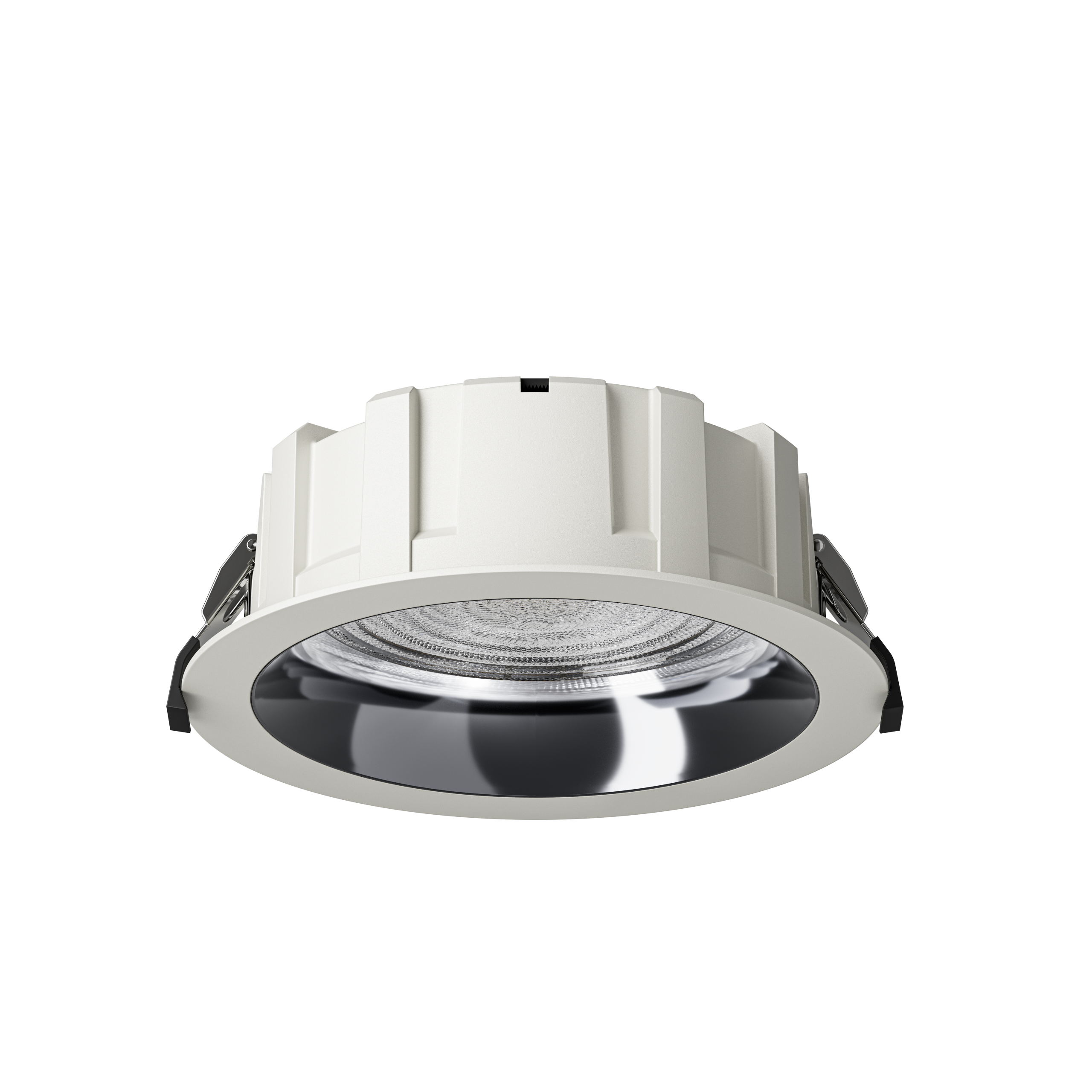

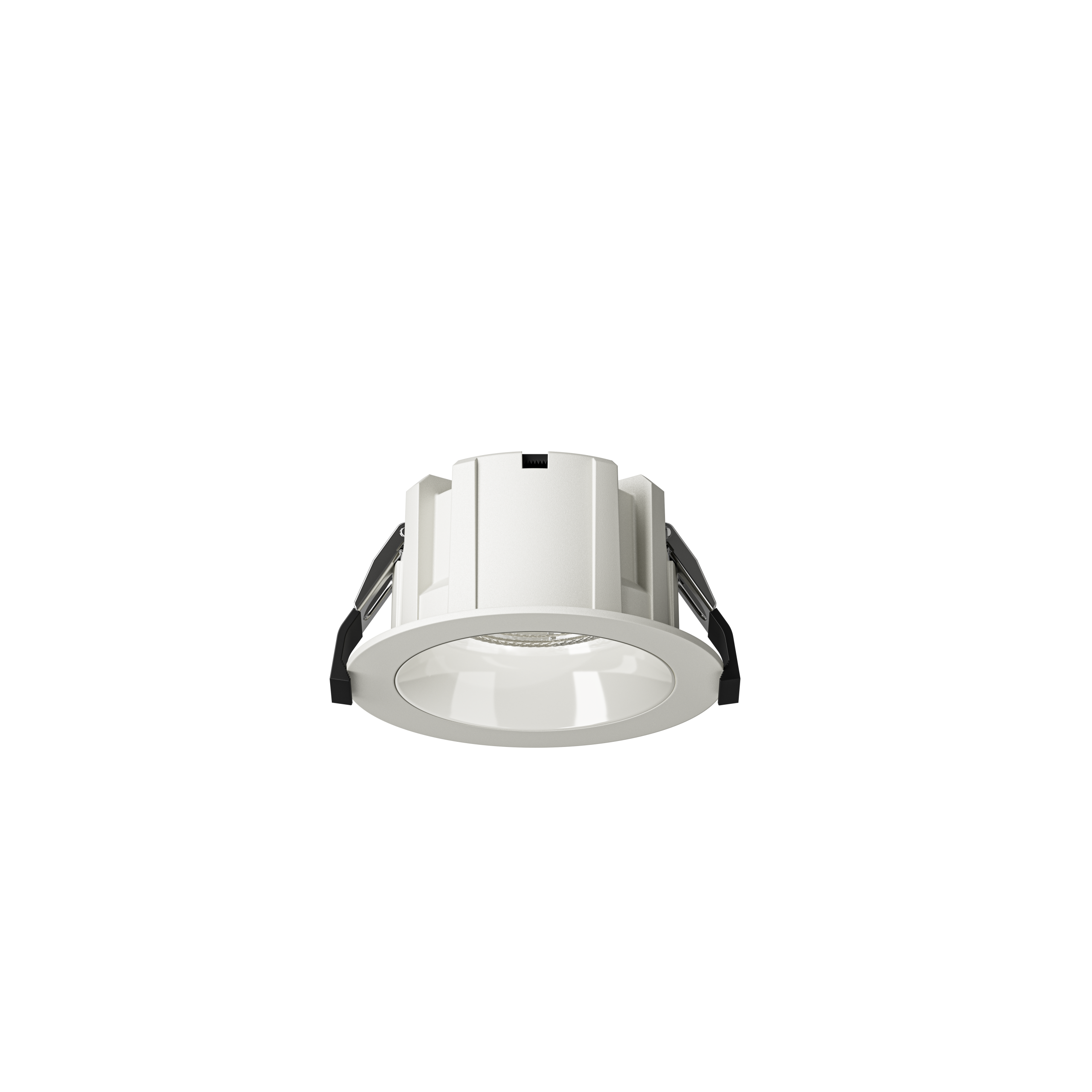

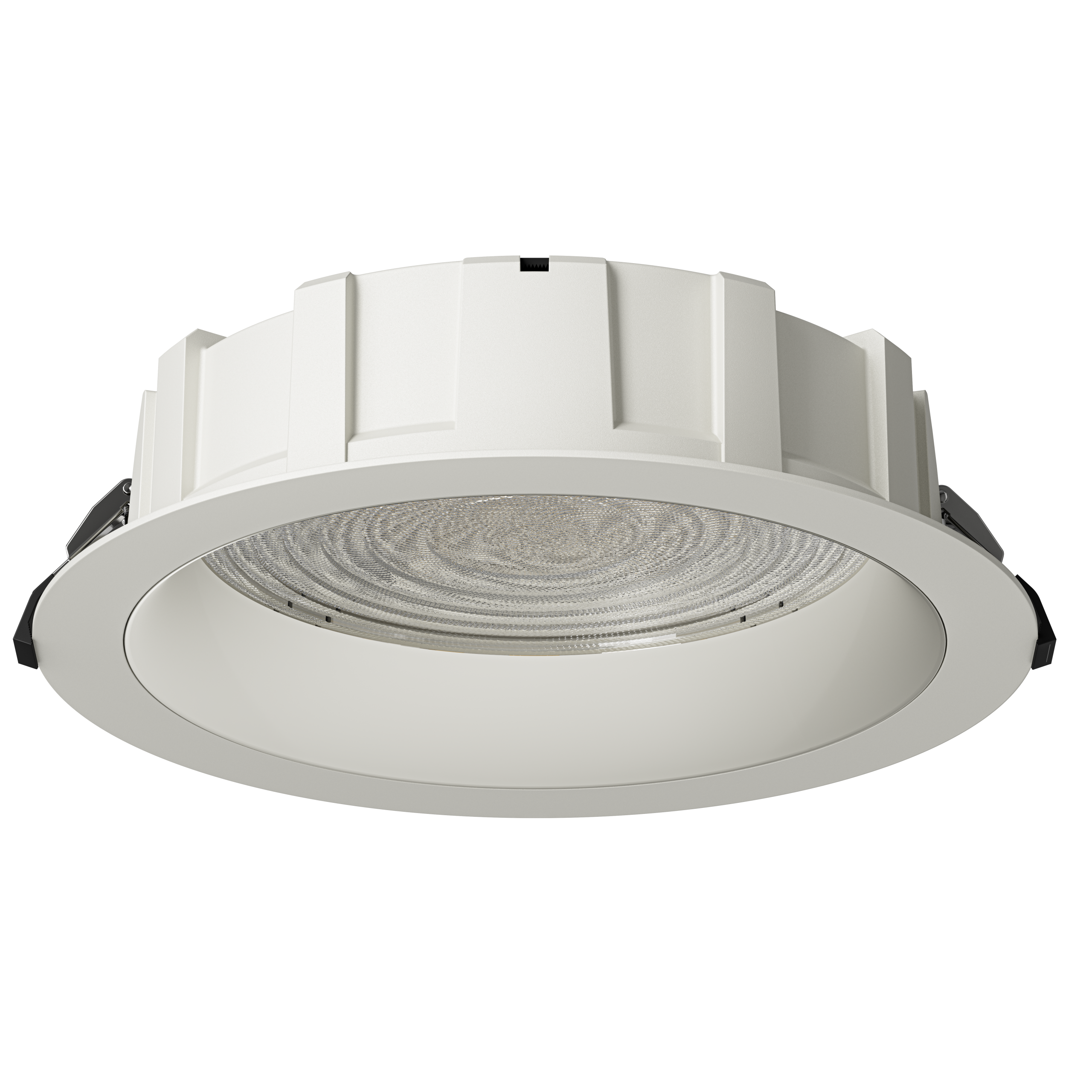

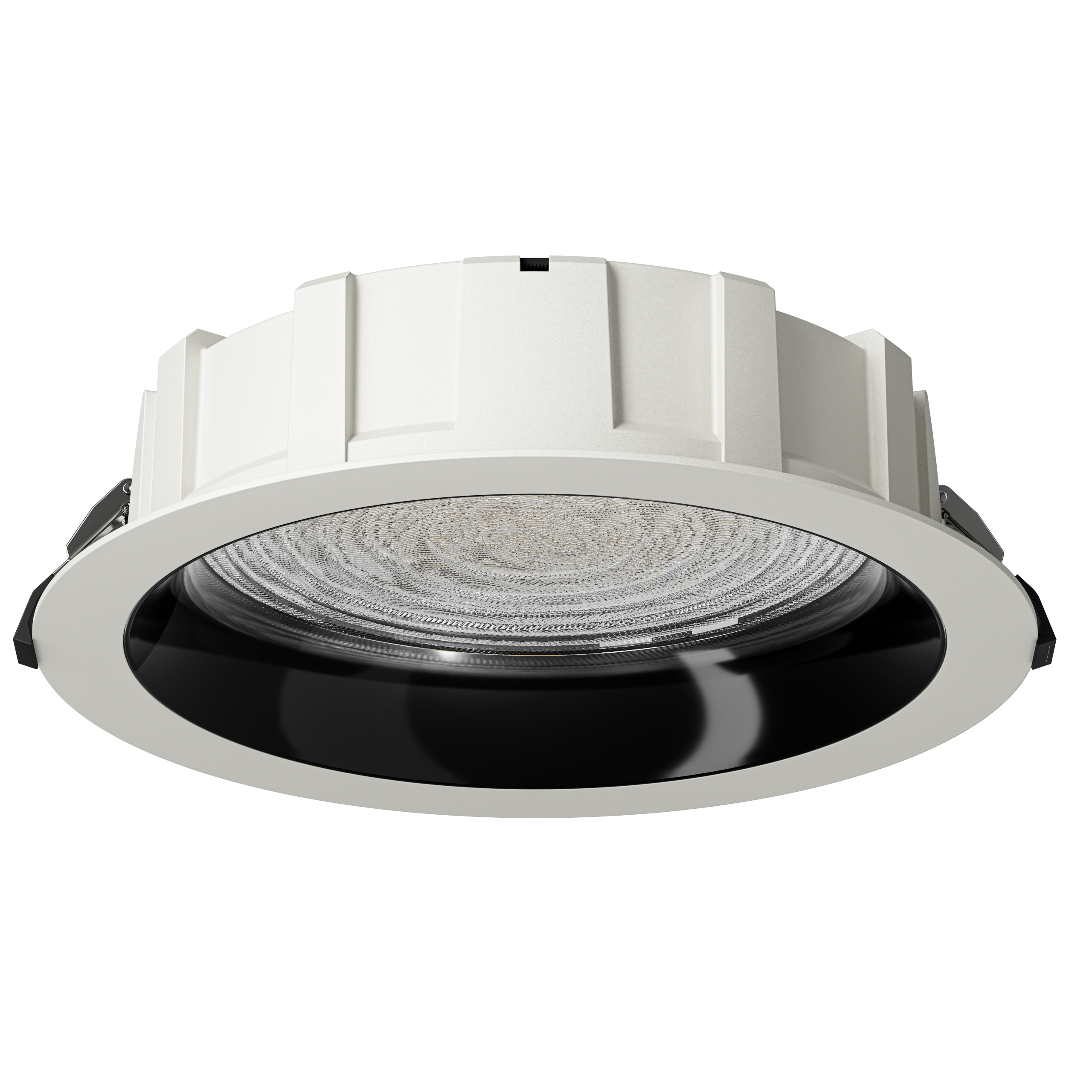

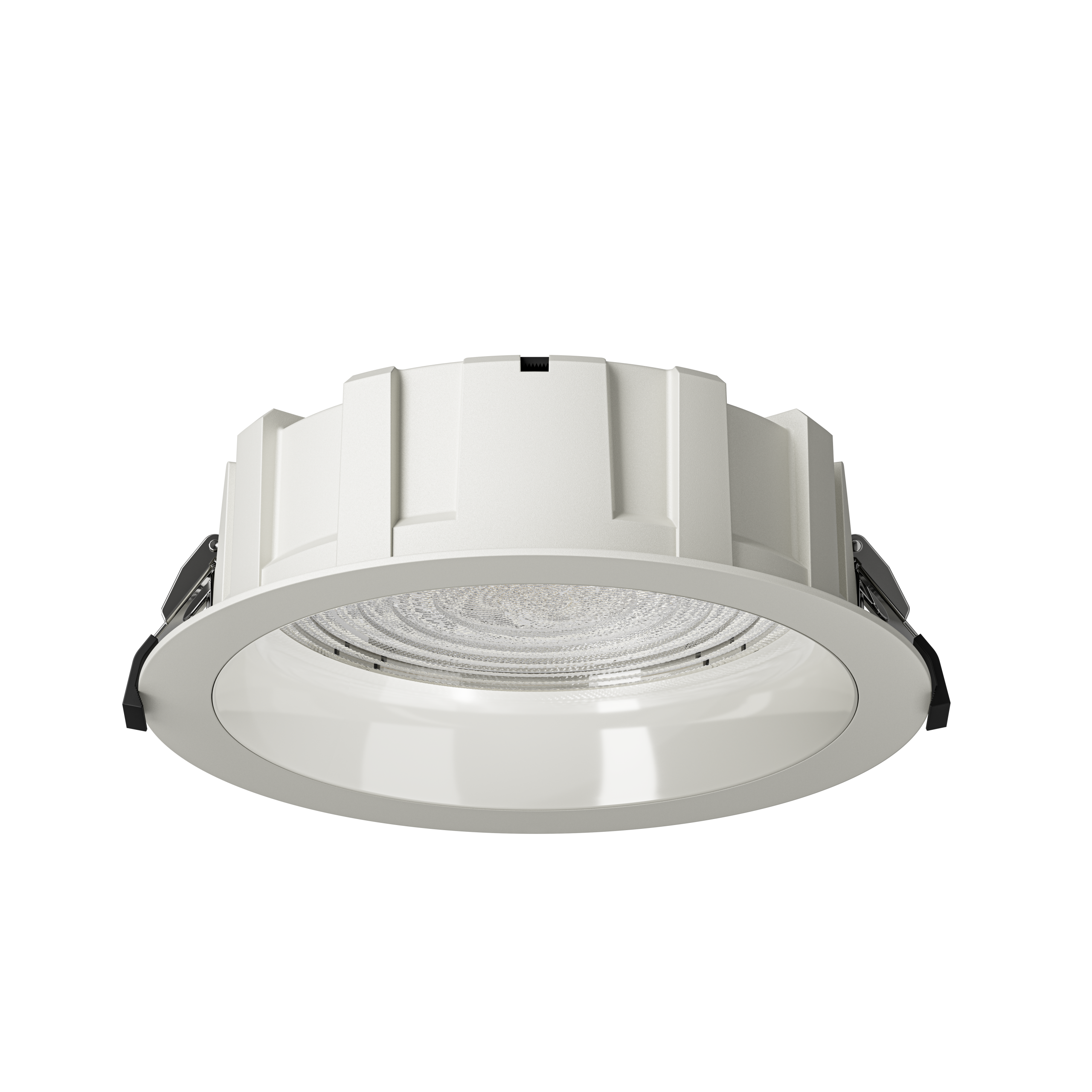

HU- SMD Downlight

Power 12W/   20W/   30W/   35W/   40W/   45W
Beam Angle>60°
Cut Size∅75mm   ∅95mm  ∅125mm   ∅145mm  ∅165mm  ∅200mm
DimmingNon-dim, Phase dim, 0/1-10V, DALI, Bluetooth, ZigBee
Frequency 50/60Hz
LED ChipSMD
Installation MethodRecessed
Light Efficiency112lm/W
CCTTunable
CRI≥90
UGR< 21.6
SDCM<3
IP LevelIP20
MaterialAluminum/PC
ColorBlack and White
Adjustability*

请提供数量、吊顶条件、色温、光束角和调光需求,以便更快获得推荐。

产品系列筒灯

描述

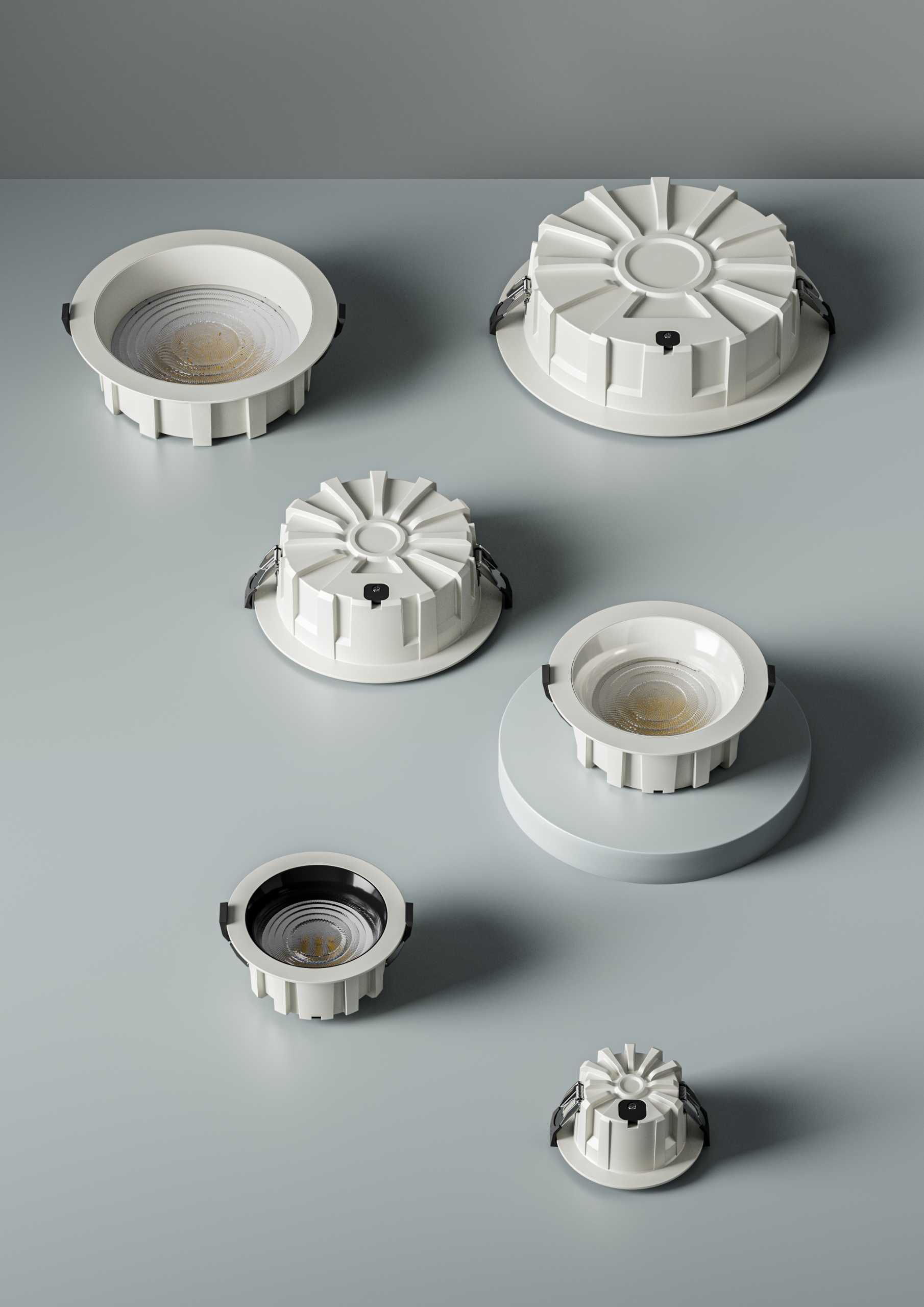

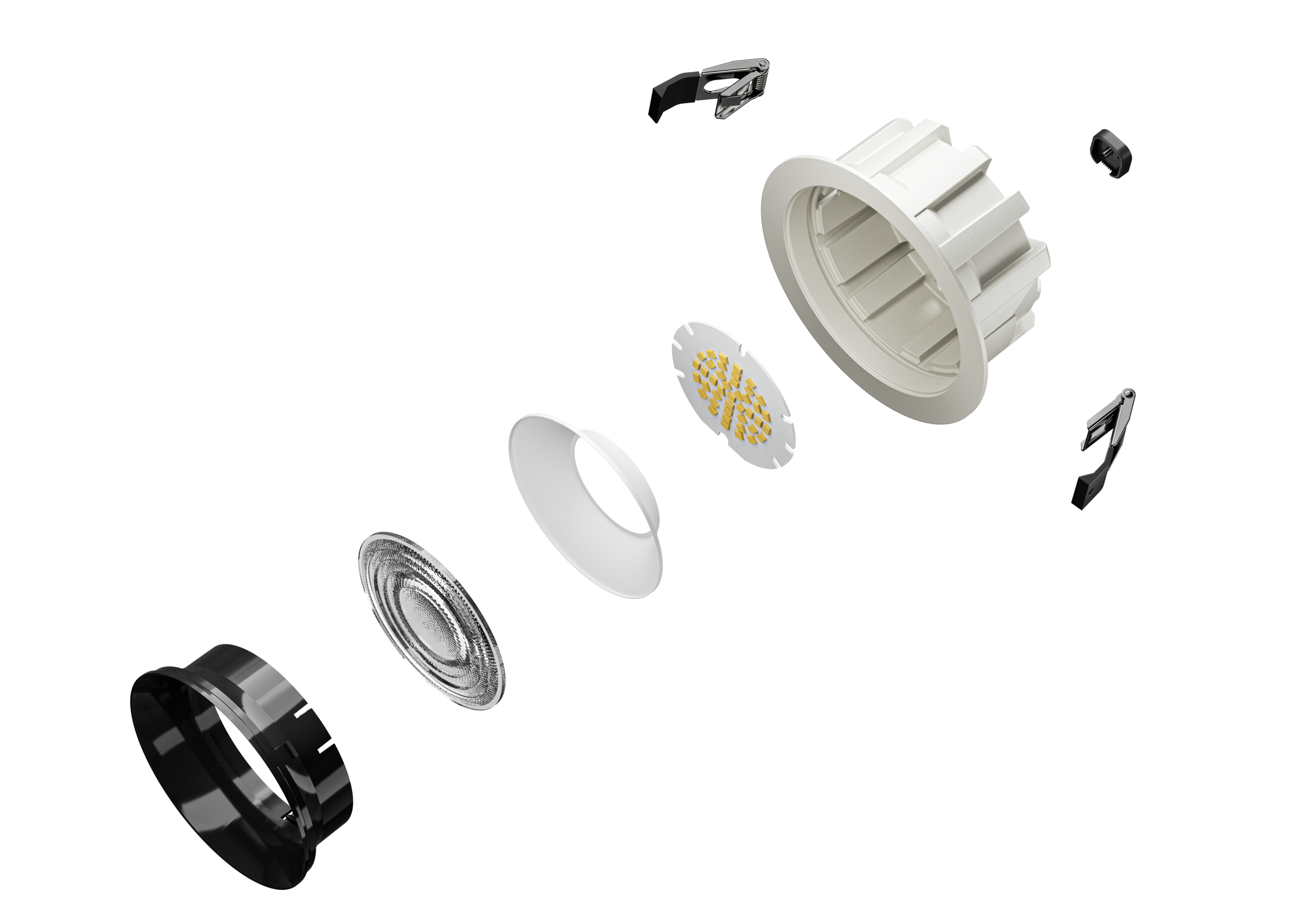

The radiator of this SMD downlight adopts an eco-friendly powder coating finish.

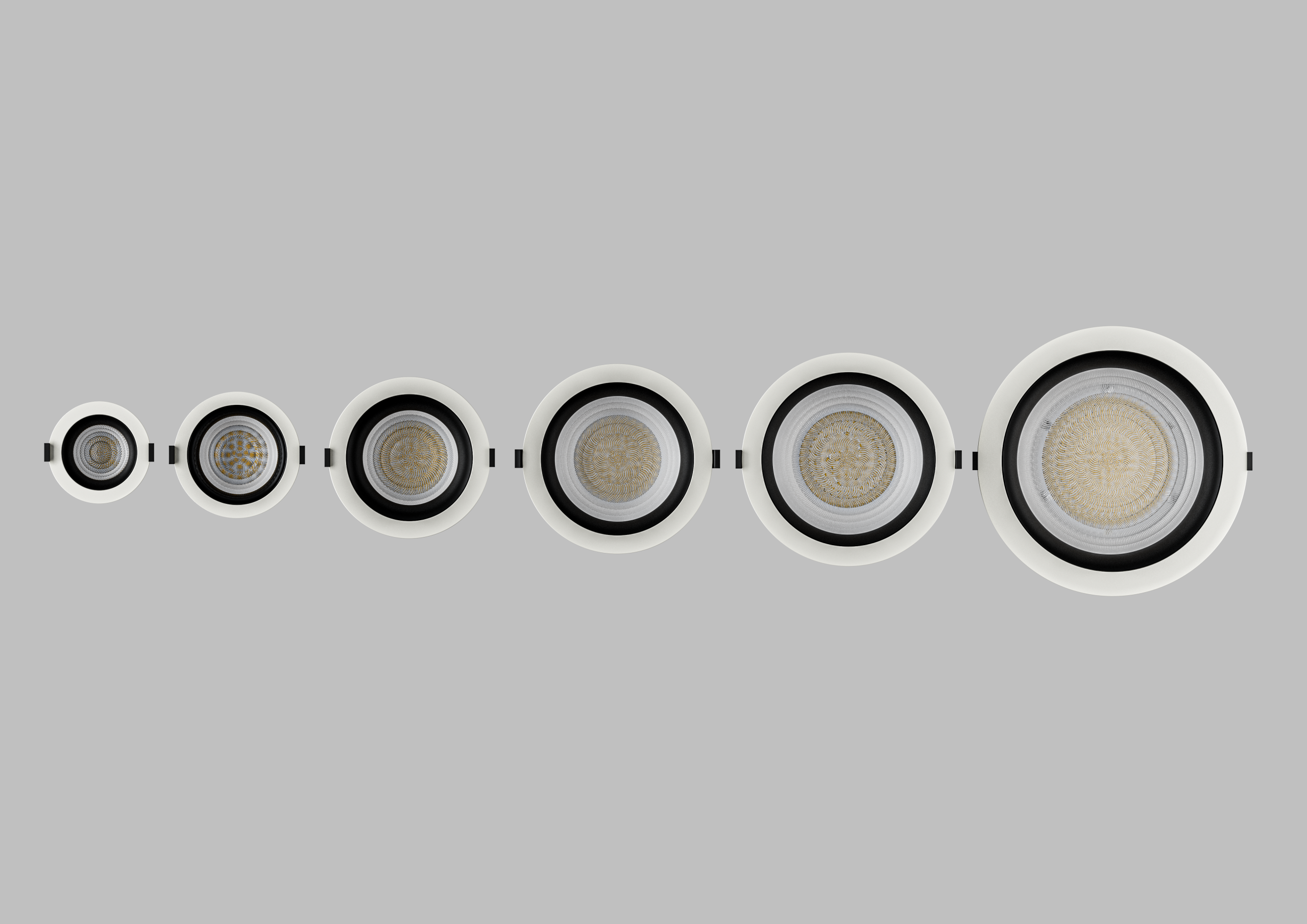

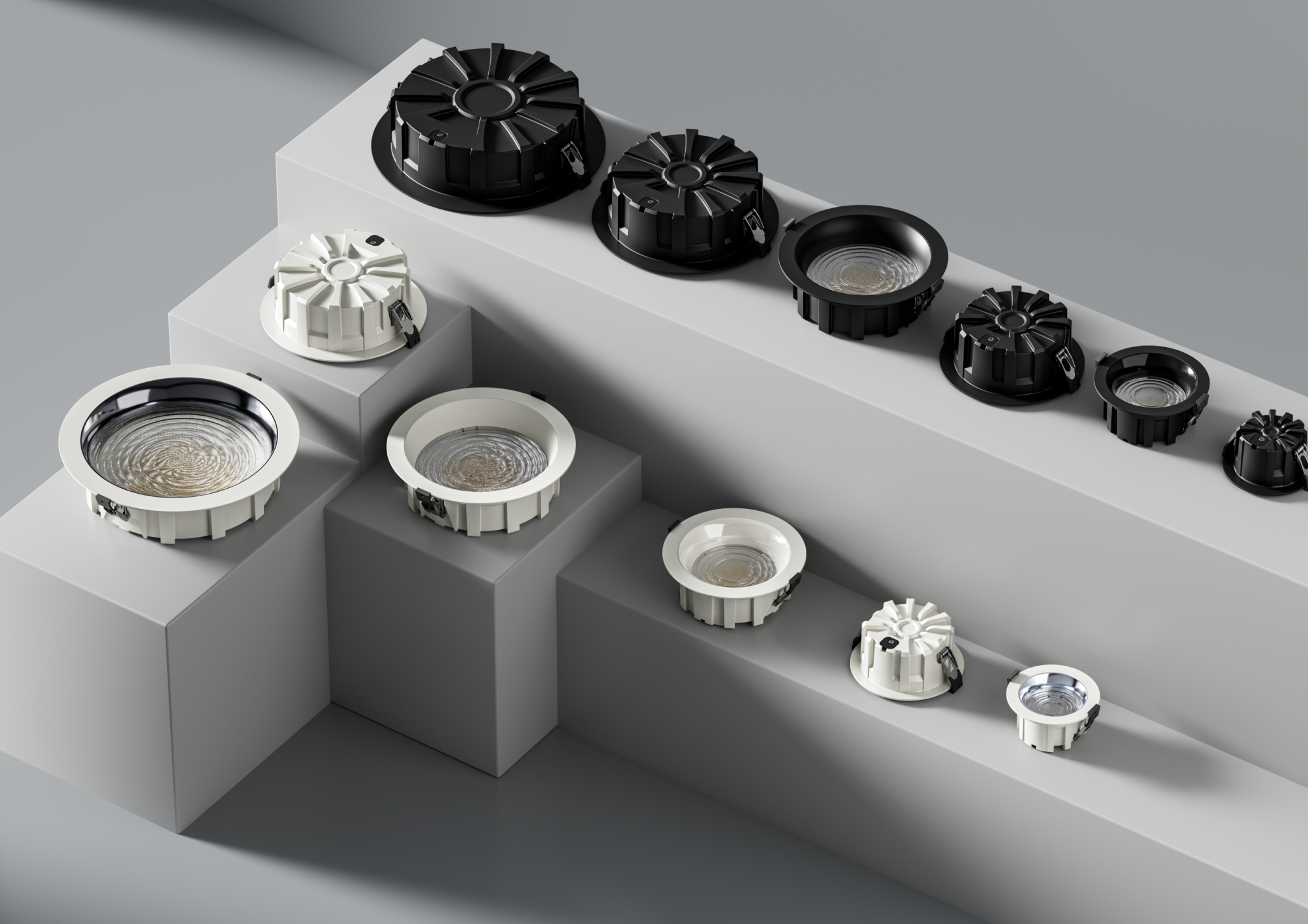

It is available in six cutout sizes: ∅75mm, ∅95mm, ∅125mm, ∅145mm, ∅165mm and ∅200 mm.
The wide-edge design on the rim of the radiator offers higher tolerance for installation cutouts, making it an ideal replacement option for existing old openings.

Fitted with high-efficiency optical lenses, the light achieves excellent luminous efficiency.It features an extra-wide beam angle, suitable for various locations requiring flood lighting.
Boasting a minimalist design paired with cost-effective optical components, it is the preferred lighting solution for supermarkets, office buildings and other public areas.
