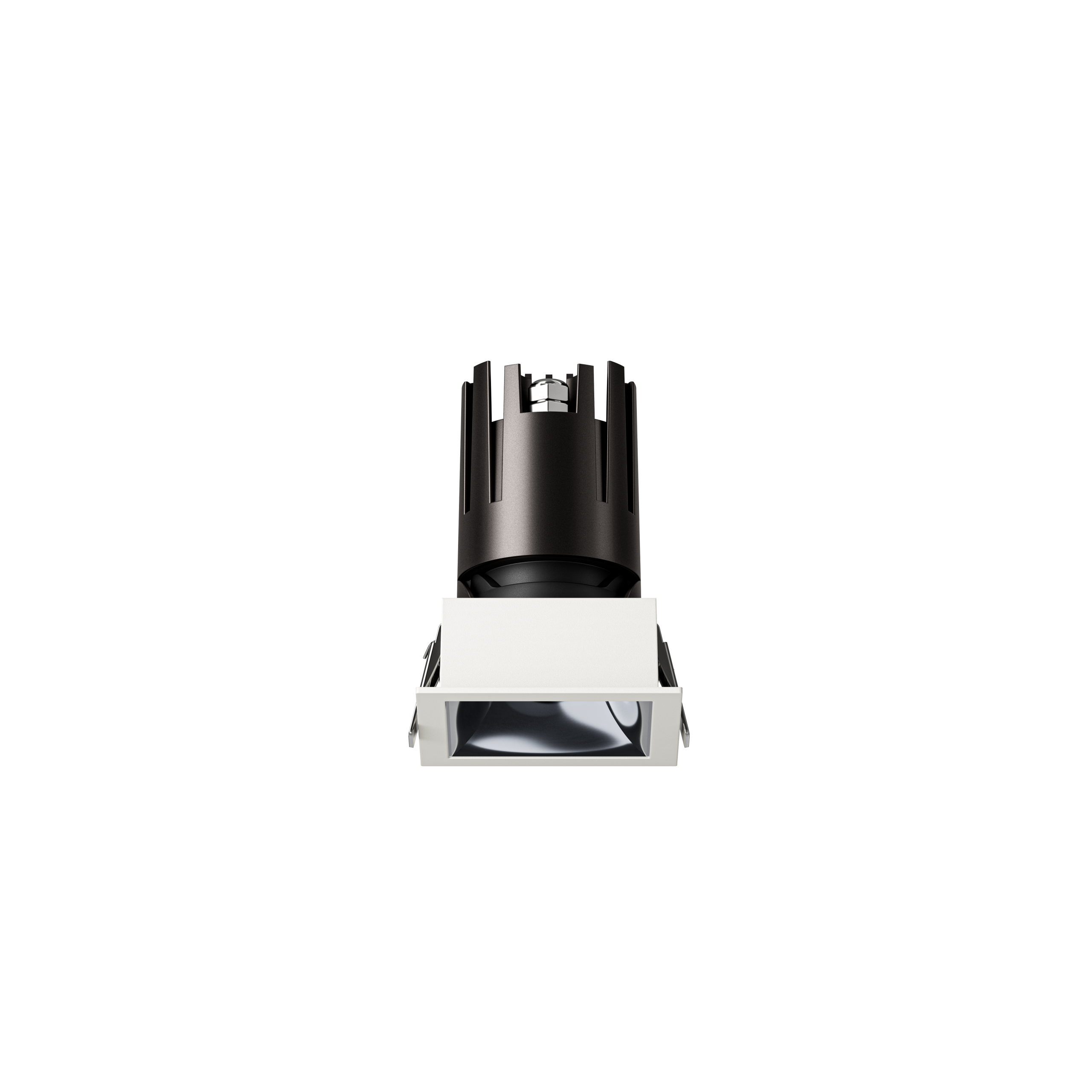

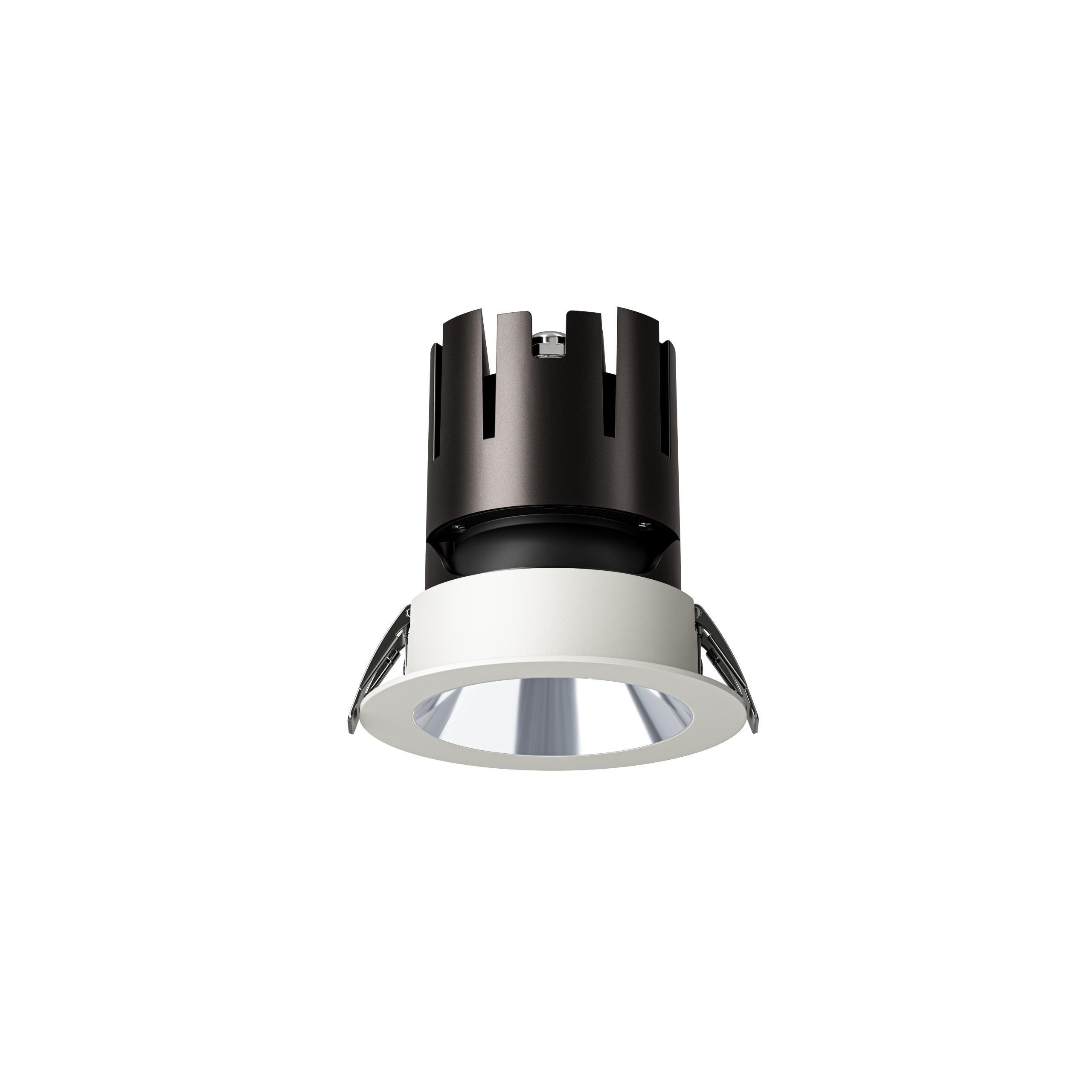

HB-Waterproof Spotlights

Power9W/   10W/   12W/   24W
Beam Angle15° / 24° / 36° / 50°
Cut Size∅55mm   ∅65mm   ∅75mm   ∅95mm
DimmingNon-dim, 0/1-10V, DALI,
Frequency50/60Hz
LED ChipCOB
Installation MethodRecessed
Light Efficiency83.7lm/W
CCTSingle
CRI≥90
UGR< 11
SDCM<3
IP LevelIP65
MaterialAluminum/PC
ColorBlack and White

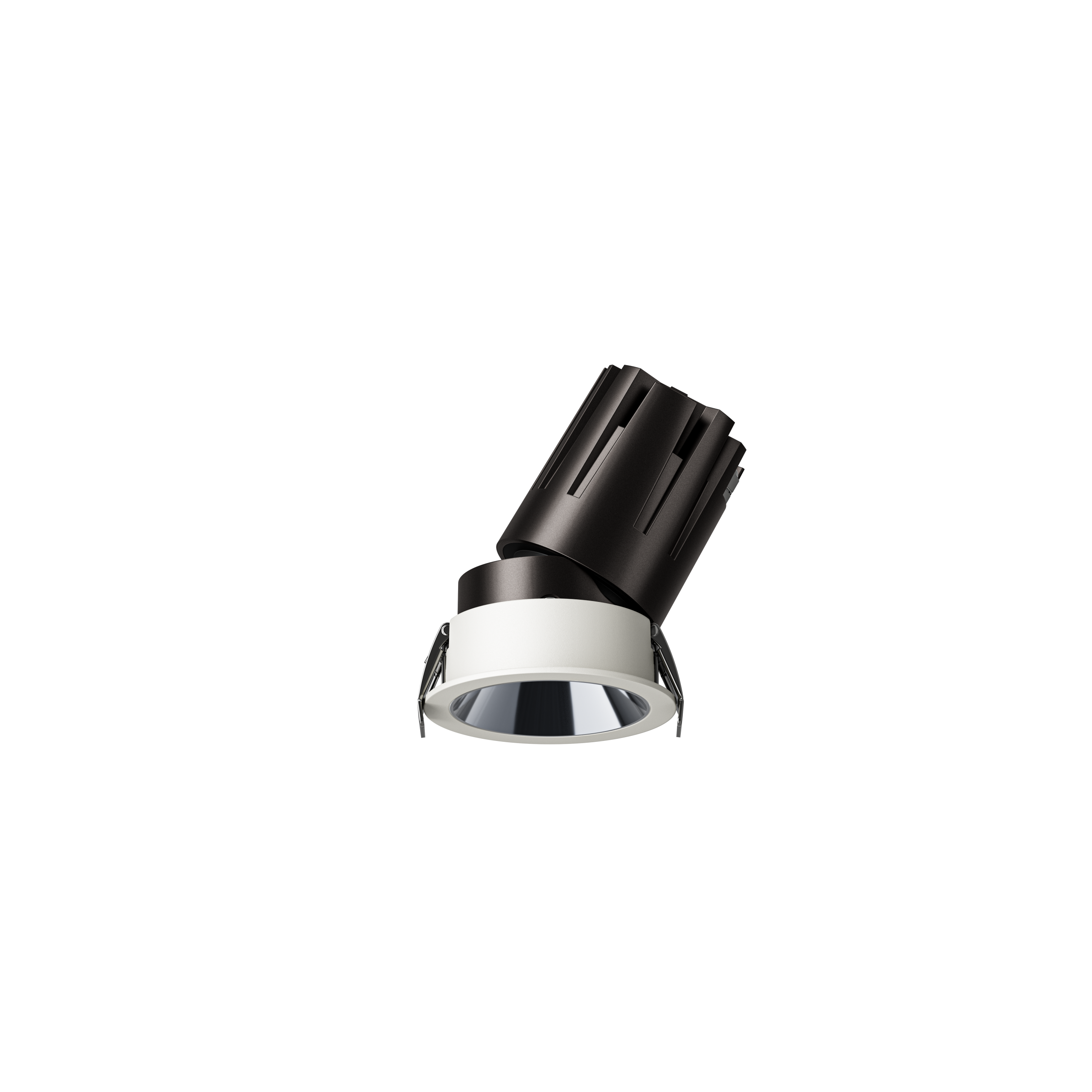

Adjustability355°Rotation,28° Tilting

请提供数量、吊顶条件、色温、光束角和调光需求,以便更快获得推荐。

描述

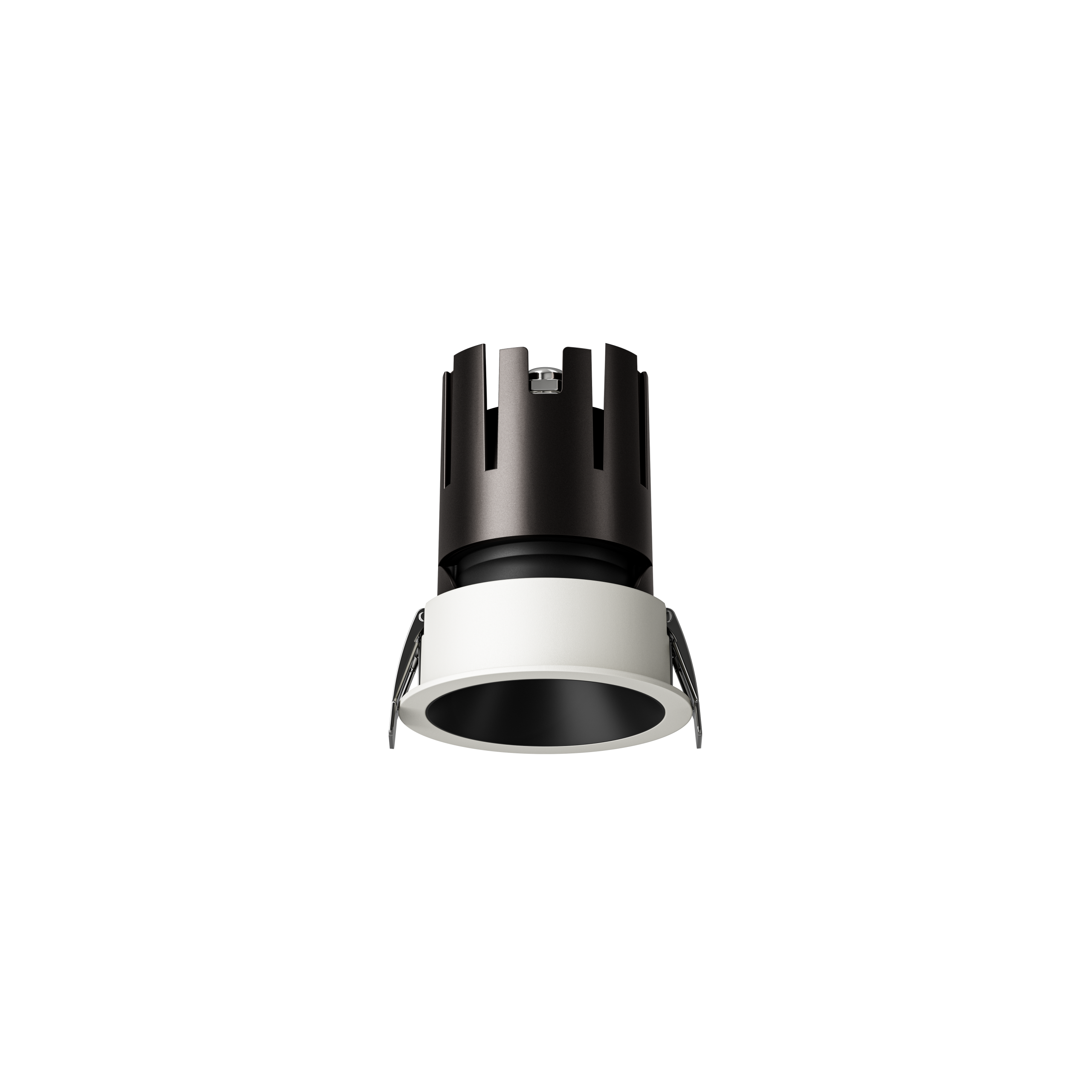

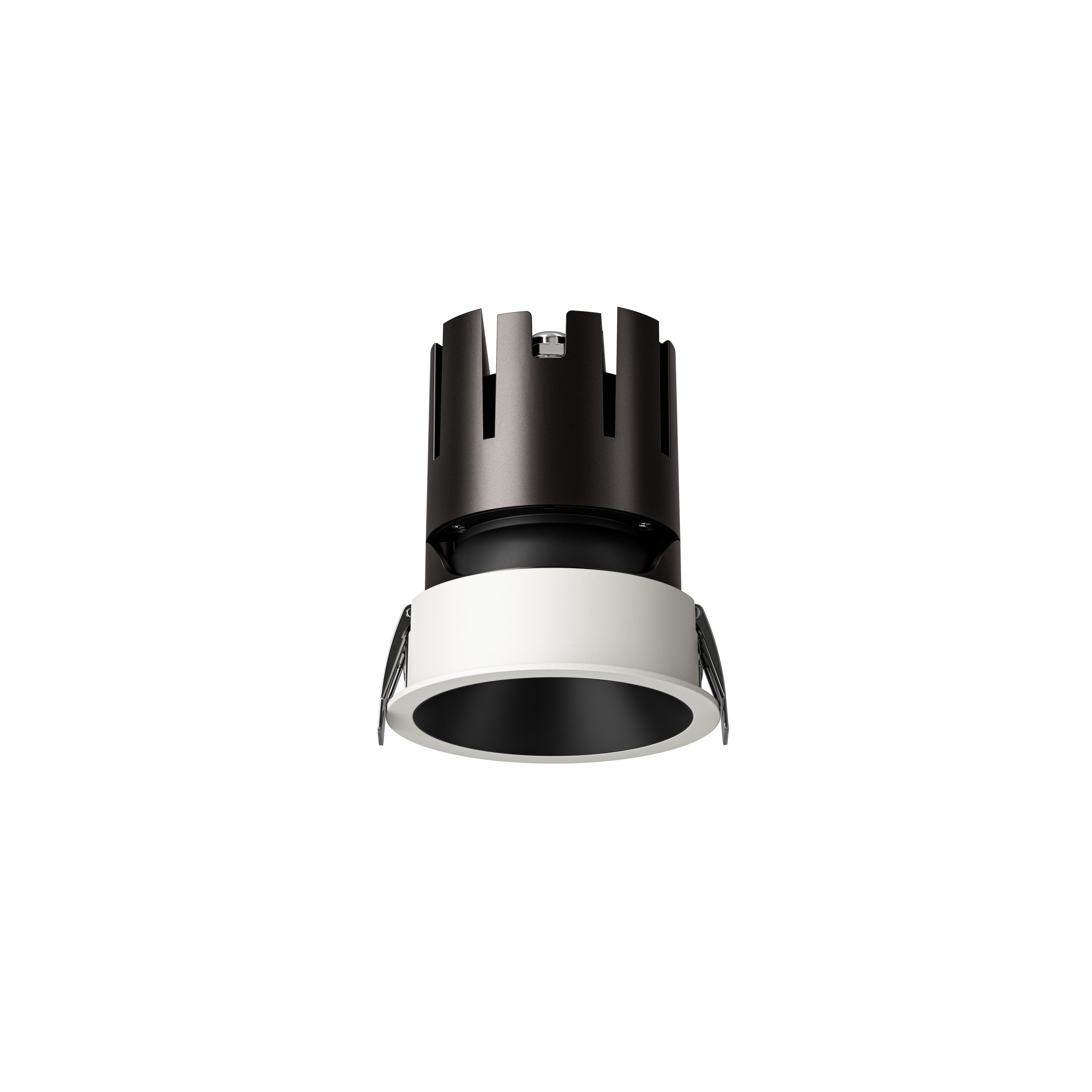

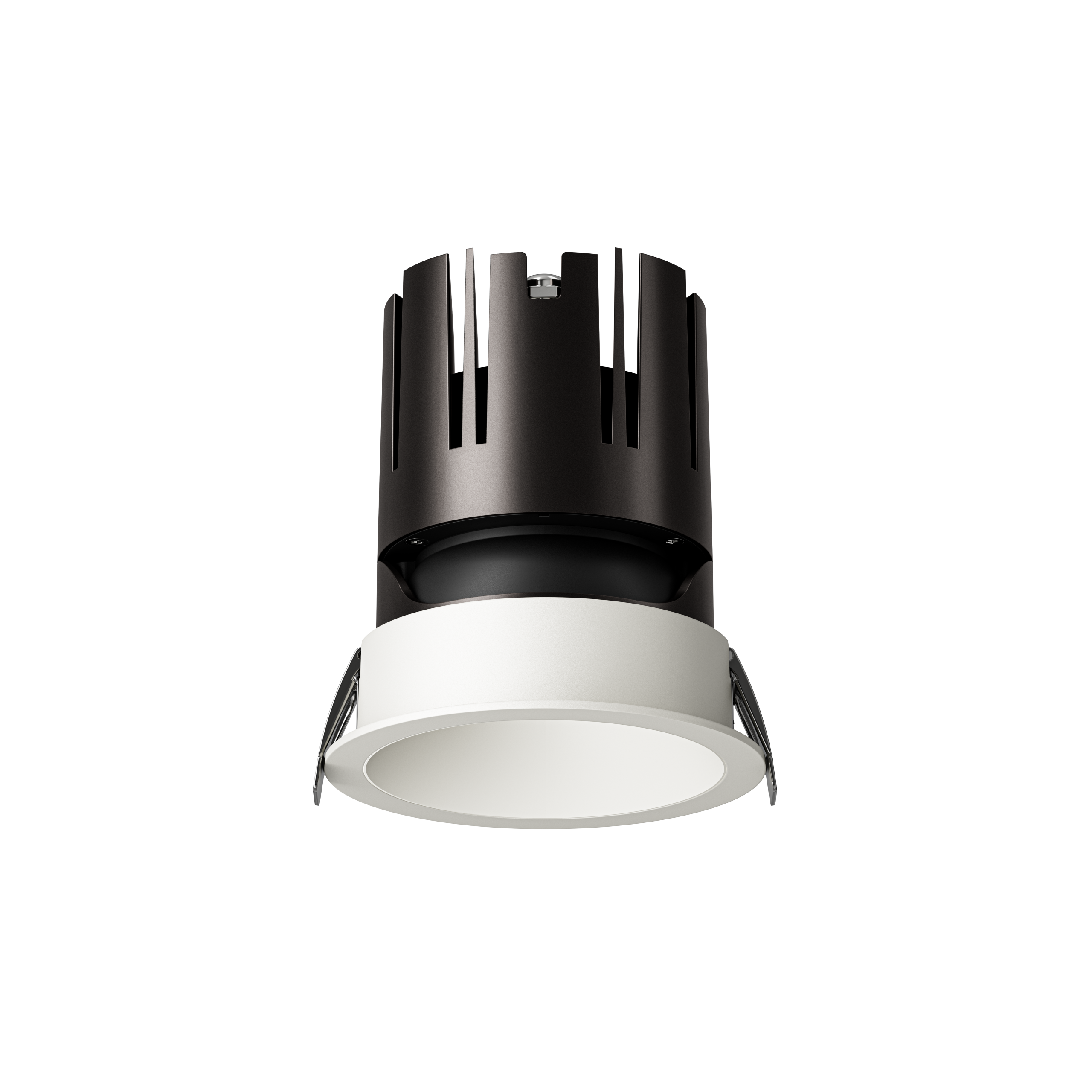

This product is available in cutout sizes of ∅55mm, ∅65mm, ∅75mm and ∅95mm. Its delicate spray paint finish maximizes heat dissipation performance.

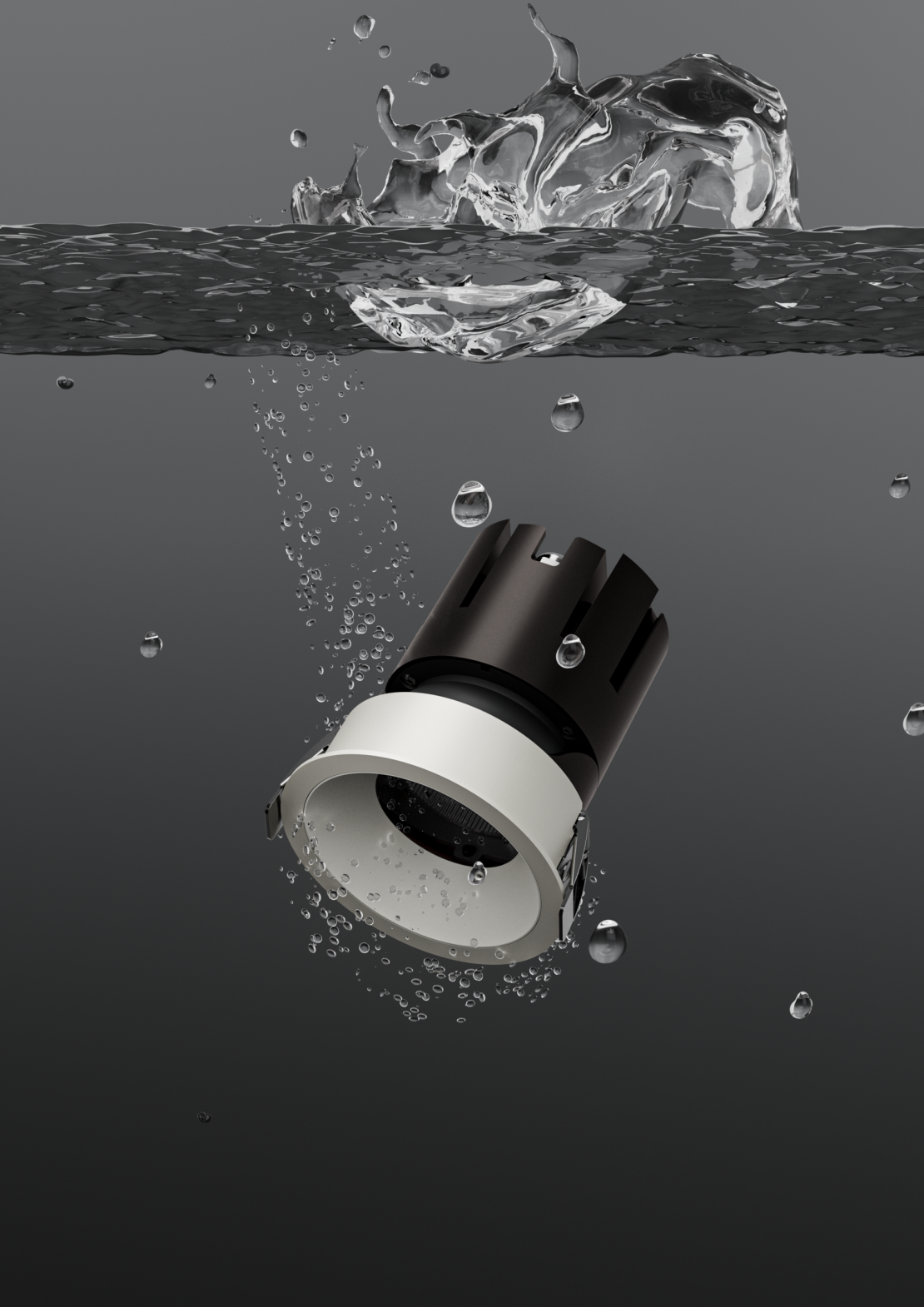

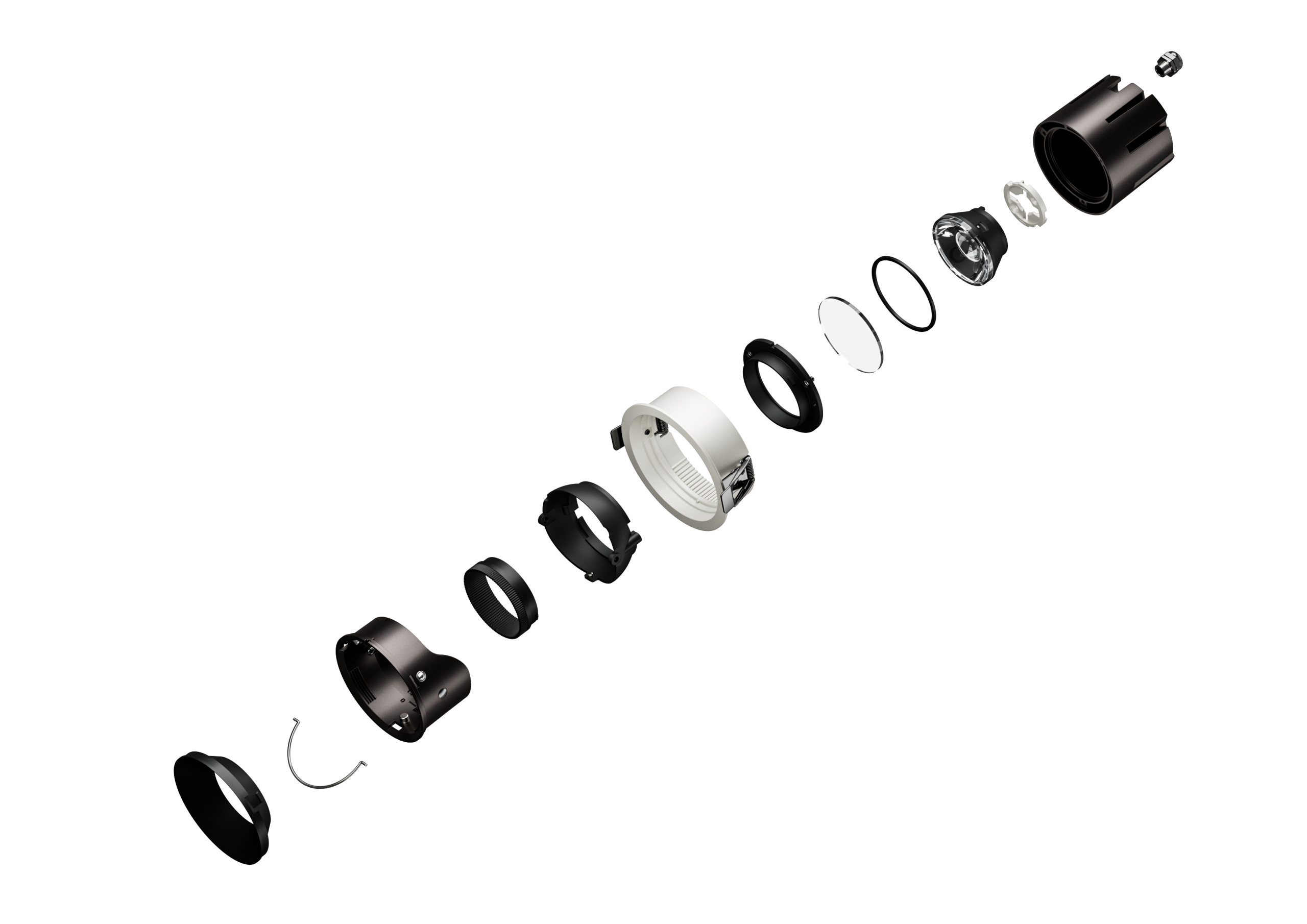

Developed with a dedicated design concept for genuine waterproof performance, it features a sectional and modular structure. The combination of waterproof glass and rubber gaskets delivers reliable waterproofing for the radiator assembly. The optional die-cast mid-ring and PC mid-ring further enhance its modular flexibility.

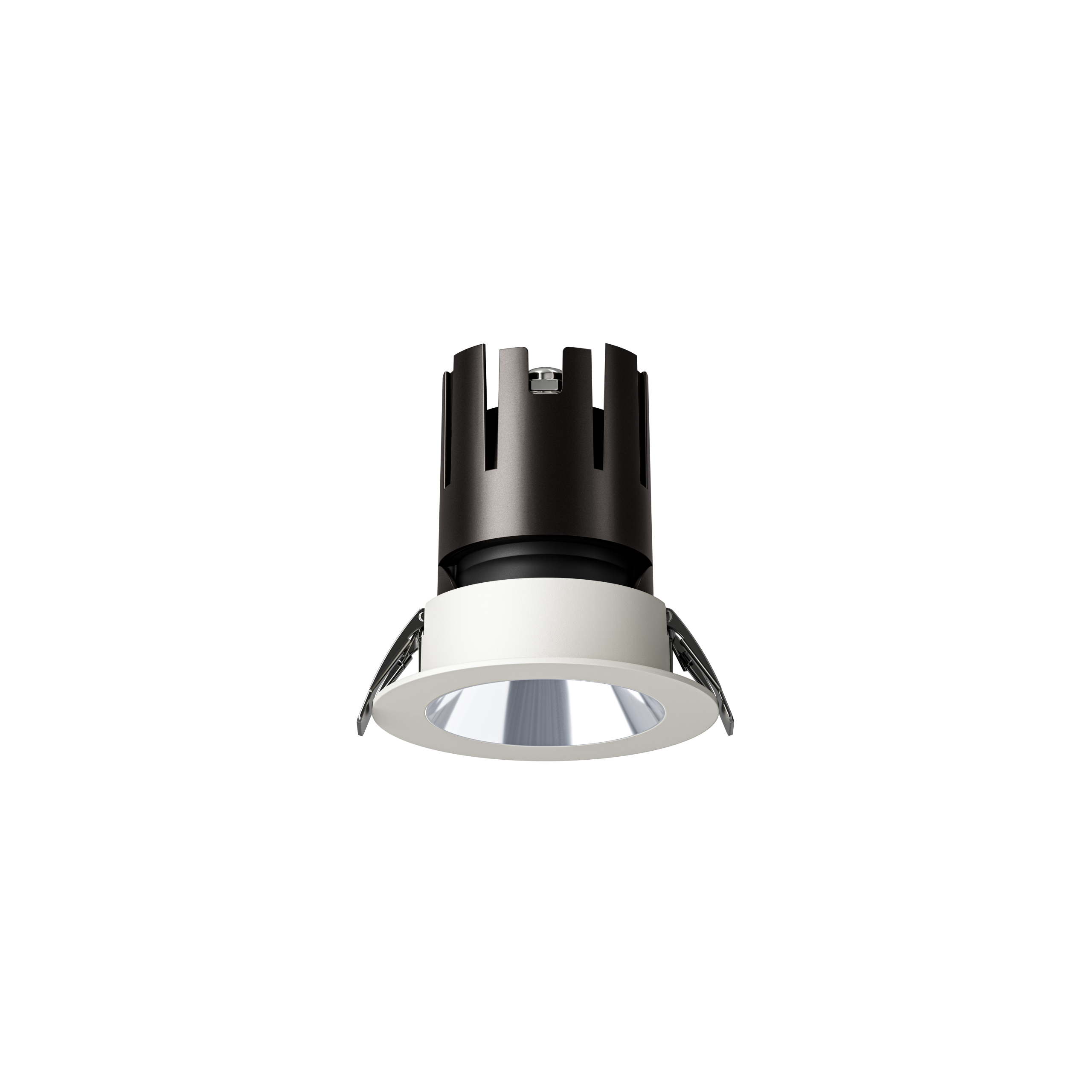

It supports various interchangeable face rings and an extended range of anti-glare reflectors, with effective light-leakage prevention. Thoughtfully designed pull rings, as well as optional honeycomb grilles and optical lenses, make this fixture an indispensable solution for waterproof engineering projects.
